MINI Cabrio R57 Cooper Single compon.,fuse box,engine compartm.

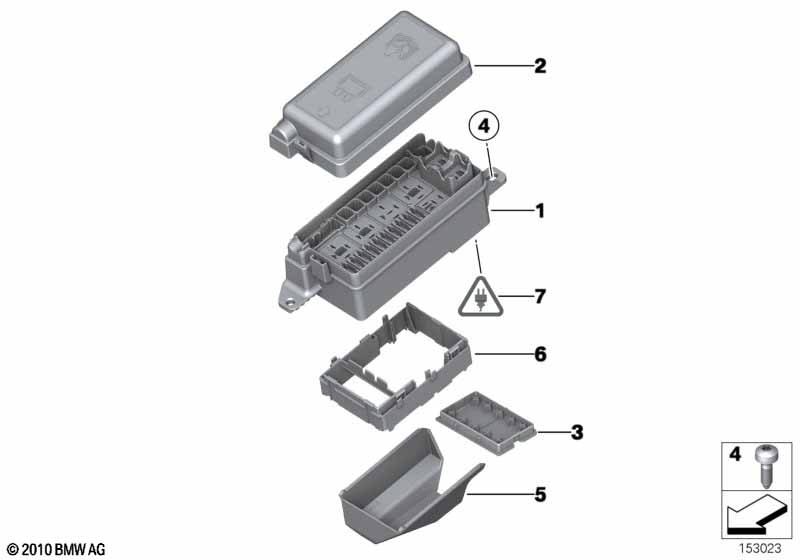

Single compon.,fuse box,engine compartm.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuse box 1 09/2009 61143450646 +core
01 Fuse box 1 09/2009 03/2011 61149213373
02 Cover, power distribution box 1 03/2007 09/2009 61143449505 $5.58
02 Cover, power distribution box 1 09/2009 03/2011 61149213374
03 Cover, fuse box 1 61131509012 $2.93
04 Torx-bolt with washer ISA M6X21 2 51248182364 $1.27
05 Cover 1 61136906629 $2.58
06 Frame 1 61136921483 $2.22
X4844
07 Socket housing 1 POL. 1 61136900547 $2.27
X4014
07 Rep. kit for socket housing 4 POL. 1 61132359996
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,75-1,0 MM² SN X 61130056965
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN X 61138369634 $0.55
X4009, X4010
07 Universal socket housing uncoded 10 POL. 2 61136901814 $2.00
only in conjunction with
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN X 61138364834 $0.35
-- Socket contact ELO-Power 5,2x0,63 1,5-2,5 MM² SN X 61138364842 $0.50
-- Socket contact ELO-Power 5,2x0,63 2,4- 4,0 MM? X 61138364844 $0.50
-- Socket contact ELO-Power 2,8x0,63 0,35-0,5 MM² SN X 61138377162 $0.35
X4013
07 Universal socket housing uncoded 12 POL. 1 61136906580
only in conjunction with
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN X 61138364834 $0.35
-- Socket contact ELO-Power 2,8x0,63 0,35-0,5 MM² SN X 61138377162 $0.35
X4015, X4008, X4007
07 Universal socket housing uncoded 3 POL. 3 61136900561
Notes
  • +core = plus core charge (possibility of a return of the old part)
