MINI Cabrio R57 Cooper Antenna cable

Antenna cable
No. Description Supp. Qty  From   Up To  Part Number Price Notes

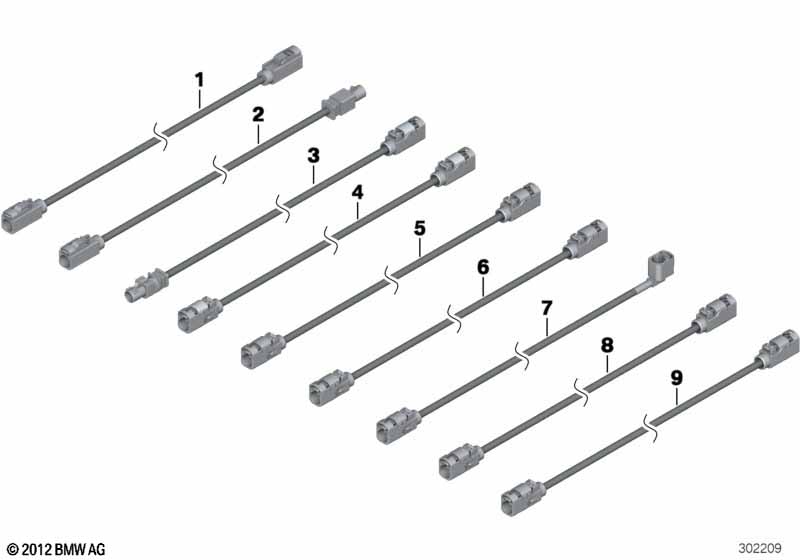

  i The antenna cables in this diagram
cover all individual antenna
cables installed in the vehicle. As
standardized lengths are concerned,
excessive lengths result, which must be
tied back as a
loop at a suitable location in the
vehicle. Excessive lengths of more than
60 in/1.50 m must be avoided.
X13338-X22019
01 Universal aerial cable 6685MM 1 09/2009 08/2010 61119227452 ENDED
Bushing, straight - Bushing, straight
01 Universal aerial cable 2960MM 1 61119174376 $43.88 ENDED
FOR
Bluetooth
DAB
Roof-mounted antenna for FM - Diversity
IBOC
01 Universal aerial cable 5735MM 1 61119141505 $43.88 ENDED
FOR
TV 1
TV 2
Diversity FM connection point
GPS RHD Japan
01 Universal aerial cable 3870MM 1 61119141504 $43.88 ENDED
FOR
GPS
SDARS
DAB III
Cockpit FM
GPS cockpit
X13382-X13384
02 Universal aerial cable 3970MM 1 09/2009 08/2010 61119227496 ENDED
Bushing, straight - Pin, straight
02 Universal aerial cable 7060MM 1 61119141502 $43.88 ENDED
FOR
Telephone GSM
09 Antenna cable for Diversity SPEG 3410MM 1 61119247822
Notes
  • ENDED = the part has been discontinued (no longer available).
