5' E60 M5 Microfilter/housing parts

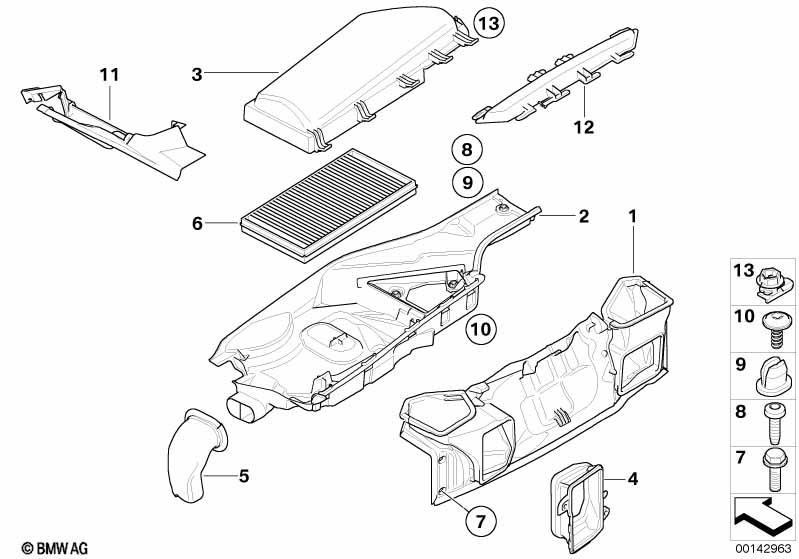

Microfilter/housing parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Filtered air duct 1 64316921597 $89.03
02 Air inlet right 1 64316945204 $82.52
02 Air inlet left 1 64316921601 $82.52
03 Cover, filter housing, right 1 64316950936 $28.67
03 Cover, filter housing, left 1 64316913503 $28.67
04 Sealing frame left 1 64316917825 $28.91
04 Sealing frame right 1 64316917826 $28.91
05 Water drain, left 1 64316913497 $7.93
05 Water drain, right 1 64316913498 $7.93
06 Microfilter/activated Carbon container 2 64319171858 $51.60
For vehicles with
Automatic air conditioning

S534A=No
06 Microfilter 2 11/2010 64319174370 $39.49 ENDED
06 Microfilter/activated Carbon container 2 64319171858 $51.60
07 Screw 4 64316939163 $0.62
08 Oval head screw 2 07147121723 $0.38
09 Expanding nut 2 51118108028 $0.73
10 Torx bolt K50 X 18 2 17117510907 $0.60
11 Inlet manifold left 1 64316939721 $8.13
11 Intake manifold right 1 64316939722 $8.13
12 Cover 1 64316935870 $7.08
13 Rotary clip 1 64316933306 $1.33
Notes
  • ENDED = the part has been discontinued (no longer available).
