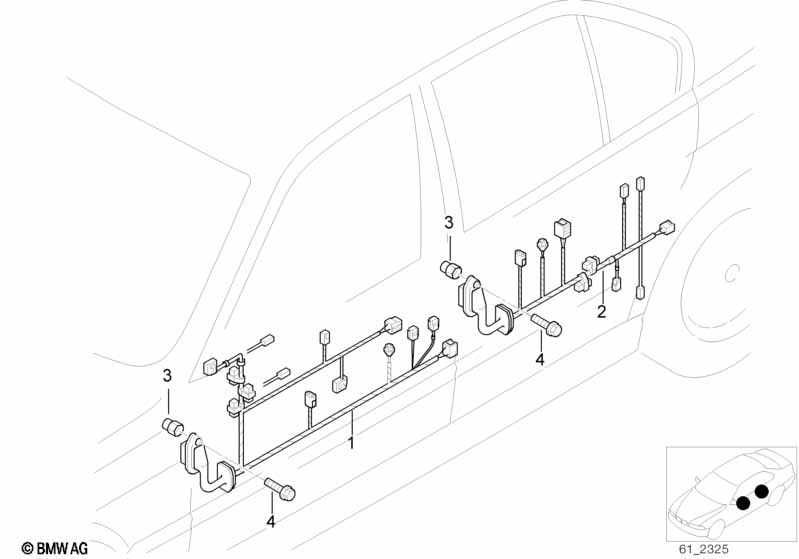

5' E60 520d Door cable harnesses

Door cable harnesses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiring drivers side 1 09/2005 61126925919 $102.50
01 Wiring co-drivers side 1 09/2005 61126925925 $102.50
01 Wiring drivers side 1 09/2005 03/2006 61126966543 $102.50
01 Wiring drivers side 1 03/2006 03/2007 61126972562 $102.50
01 Wiring drivers side 1 03/2007 03/2008 61129120776 $102.50
01 Wiring drivers side 1 03/2008 61129175866 $105.57
01 Wiring co-drivers side 1 09/2005 03/2006 61126966551 $102.50
01 Wiring co-drivers side 1 03/2006 03/2007 61126972577 $102.50
01 Wiring co-drivers side 1 03/2007 03/2008 61129120788 $102.50
01 Wiring co-drivers side 1 03/2008 61129175878
For vehicles with
Interior/outside mirror with auto dip
or
Comfort seat with memory
or
Seat adjuster, electric, with memory
or
Light package

S430A=Yes

S456A=Yes

S459A=Yes

S563A=Yes
01 Wiring drivers side 1 09/2005 03/2006 61126966548 $102.50
01 Wiring drivers side 1 03/2006 03/2007 61126972569 $102.50
01 Wiring drivers side 1 03/2007 09/2007 61129120784 $102.50
01 Wiring drivers side 1 09/2007 03/2008 61129163134 $105.57
01 Wiring drivers side 1 03/2008 61129175874 $105.57
01 Wiring co-drivers side 1 09/2005 03/2006 61126966558 $138.60
01 Wiring co-drivers side 1 03/2006 03/2007 61126972584 $138.60
01 Wiring co-drivers side 1 03/2007 09/2007 61129120796 $138.60
01 Wiring co-drivers side 1 09/2007 03/2008 61129163148 $138.60
01 Wiring co-drivers side 1 03/2008 61129175886 $138.60
02 Wiring rear 2 09/2005 61126925945 $70.20
02 Wiring rear 2 09/2005 03/2006 61126966643 $70.20
02 Wiring rear 2 03/2006 03/2007 61126972611 $70.20
02 Wiring rear 2 03/2007 09/2007 61129120828 $70.20
02 Wiring rear 2 09/2007 03/2008 61129163173
02 Wiring rear 2 03/2008 61129175902 $72.28
03 Blind rivet nut, flat headed M5 8 61136906058 $0.62 ENDED
03 Blind rivet nut, flat headed M5 8 61136954561 $0.63
04 Hex bolt 8 61136954557 $0.79
Notes
  • ENDED = the part has been discontinued (no longer available).
