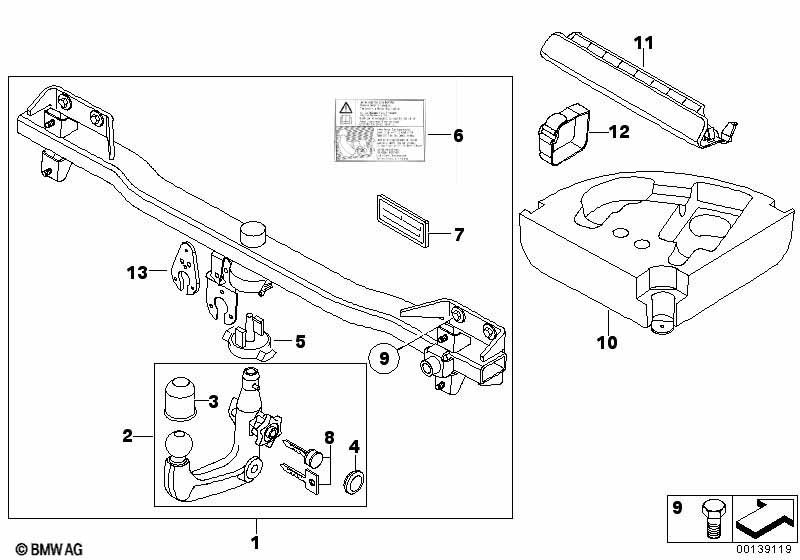

5' E60 520d Towing hitch, detachable

Towing hitch, detachable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Towing hitch, detachable 1 71606782128 +core, EBA 0303610, EBA 0392433, EBA 2156828
02 Removable ball 1 71606782257 +core
03 Trailer hitch ball protection cap 1 71601246076
04 protective cap, key 1 71601134422 $1.04
05 Blind plug 1 71601094998 $8.48
06 Drawbar load ratings plate 90KG 1 71601094572
07 Label 1 71606754330
08 Key (code) 2wxx WESTFALIA 1 71601094282 $28.18
09 Hex bolt M10 X 25 8 71606759754 $1.53
For vehicles with
Emergency spare wheel

=No
10 Oddments tray, trailer hitch ball 1 71606760993 $48.61
11 Trailer hitch flap, prime-coated 1 51127120005 +core
11 Trailer hitch flap, painted CODE - UNI/MET. 1 51120154974 ENDED
12 Hook&loop fastener 1 71606761446
13 Plug socket bracket 1 71606769304
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
