5' E60 525d Cooling system coolant hoses

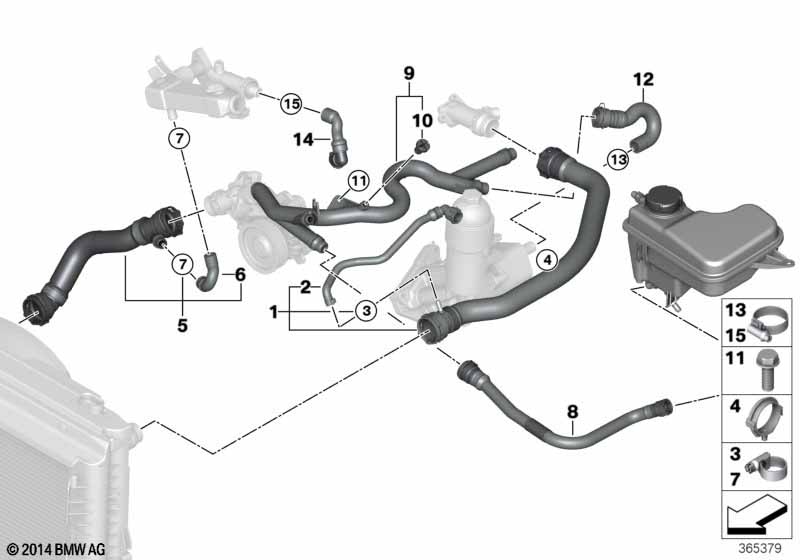

Cooling system coolant hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=No

S2TBA=No
01 Coolant hose 1 17127787449 $101.03 +core
02 Vent hose 1 17127787465
03 Hose clamp L12-14,5 1 32411712735 $0.62
04 Hose clamp 1 11531714433 $2.39
05 Coolant hose 1 17127789723 $54.57 +core
06 Hose, EGR radiator fork 1 17127789600 +core
07 Hose clamp L18-24 2 07129952109 $1.07
08 Coolant hose 1 17127787455 +core
09 Return pipe 1 11537806706 $59.75
10 Vent screw M10 1 11537793373 $5.79
11 Collar screw M6X18-ZNS3 2 11537804636 $0.60
12 Hose, heat exchanger-return pipe 1 11537788999
13 Hose clamp L16-30 1 64218367179 $1.07
14 Hose for EGR cooler 1 11537792622 $11.33 +core
only in conjunction with
-- Hose clamp L16-30 1 64218367179 $1.07
15 Hose clamp L16-30 1 64218367179 $1.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
