5' E60 525i Components central bass

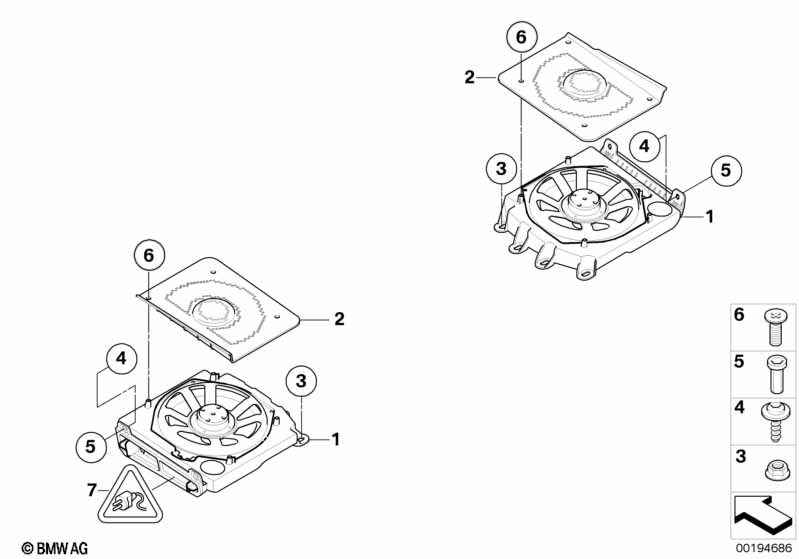

Components central bass
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Central bass, left STEREO-SYSTEM 1 65136919353 $171.83
01 Central bass, right STEREO-SYSTEM 1 65136919354 $171.83
For vehicles with
HiFi System Professional DSP

S677A=Yes
01 Central bass, left TOP-HIFI-SYSTEM 1 65139143133 $537.08
01 Central bass, right TOP-HIFI-SYSTEM 1 65139143134 $537.08
For vehicles with
HiFi speaker system

S676A=Yes
01 Central bass, left HIFI-SYSTEM 1 65139143141 $273.82
01 Central bass, right HIFI-SYSTEM 1 65139143142 $273.82
For vehicles with
Individual audio system

S752A=Yes
01 Central bass, left / Indi. Audio System 1 03/2007 65137838909 $372.10
01 Central bass, right / Indi. Audio System 1 03/2007 65137838910 $372.10 +core
02 Finisher for central bass, left 1 10/2005 65136919359 $17.85
02 Central woofer trim 1 10/2005 65136976960 $17.85
02 Finisher for central bass, right 1 10/2005 65136919360 $17.85
03 Hex nut BM6-8-ZNS3 4 03/2007 07129904869 $1.00 ENDED
03 Hex nut 4 07129906887 $0.56
04 Fillister head screw M6X16 4 07149113787 $0.71
05 Blind rivet nut, flat headed M6 4 51248226003 $2.13
06 Countersunk head screw 8 07149156622 $0.10
07 Universal socket housing uncoded 4 POL. 1 09/2010 61136984750 $5.03
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,75-1,0 MM² SN 4 09/2010 61130056965
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 4 09/2010 61138369634 $0.55
07 Rep. kit for socket housing 4 POL. 1 61132359996
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,75-1,0 MM² SN 4 61130056965
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 4 61138369634 $0.55
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
