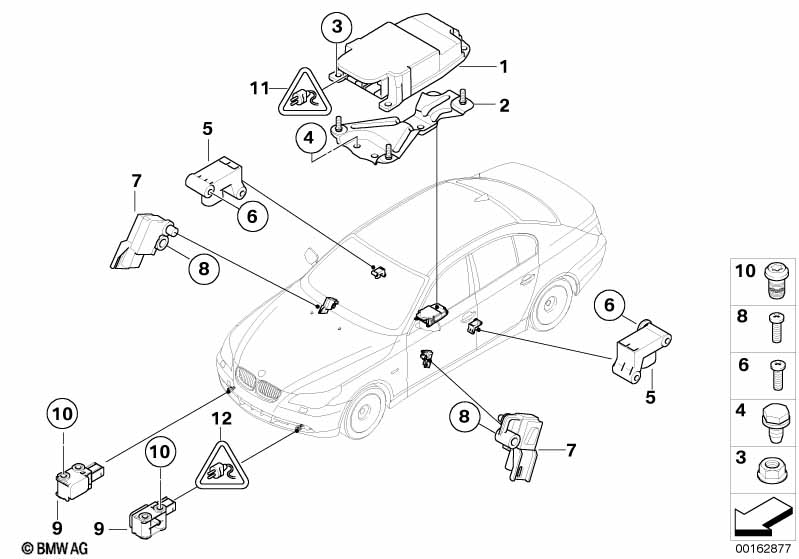

5' E60 525i Electric parts airbag

Electric parts airbag
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit airbag 1 09/2005 65779172018 $459.08
02 Bracket, control unit Airbag 1 09/2005 65776942903 $4.14
03 Locknut M6 ZNT 3 09/2005 07146982788 $0.20
04 Hex bolt M6X12-SC-U1-8.8 3 09/2005 01/2006 07119905135 $0.47 ENDED
04 Hex bolt with washer M6X12-U1-8.8 3 09/2005 07119904517 $0.36
05 Sensor, B-pillar 2 09/2005 65776977398 $70.35
06 Fillister head screw M6X14 4 09/2005 07146958688 $0.38
07 Sensor door 2 03/2006 03/2008 65779118168 $58.90 ENDED
07 Sensor door 2 03/2006 65779118167 $60.95
08 Fillister head screw ISA M6X12 2 09/2005 07147691336 $0.96
11 Protective cap, uncoded 40 POL. 1 09/2005 61136939878 $14.93
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN 10 09/2005 61131383776 $0.28
-- Socket terminal MQS 0,5-0.75 MM²/SN 10 09/2005 61131393724 $0.28
-- Socket housing 20 POL. /A 1 09/2005 12521744630 $1.73
-- Socket housing 20 POL. 1 09/2005 12521744631 $1.73
Notes
  • ENDED = the part has been discontinued (no longer available).
