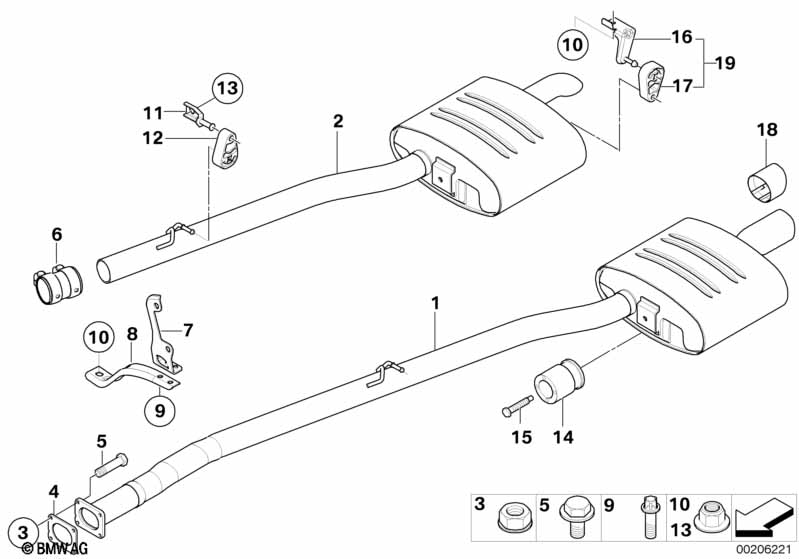

5' E61 520d Exhaust system, rear

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler 1 18307798176
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
02 Rear muffler 1 18307806819
03 Self-locking collar nut M8-10 ZNS3 4 07119905374
04 Gasket 1 18307789904
05 Fillister-head screw M8X35-10.9-ZNS3 4 07119906650 $0.87
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
06 Clamping bush D=65MM 1 18307536426 $50.38
07 Gearbox support 1 18307796187
For vehicles with
Automatic transmission

S205A=Yes
07 Gearbox support 1 18307796188
08 Bracket 1 18307796192
09 ASA-Bolt M8X20-U1-8.8 2 07129904559 $0.71
10 Collar nut M8-8-SC-ZNNIV 3 07119906089 $0.32
11 Rubber mount with bracket 1 18207510997 $31.43 ENDED
11 Bracket 1 18207510992 $8.07
12 Rubber Mounting 1 18207578238 $16.30
13 Hex nut M12X1,5ZNNIV SI 1 07129904866 $1.85
14 Vibration absorber 28HZ 1 18303419446
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
14 Vibration absorber 32 HZ 1 18303413587 $54.00
15 Collar screw M8X70 1 18407540023 $4.07
16 Bracket 2 18307797507
17 Rubber Mounting 2 18207791570
Notes
  • ENDED = the part has been discontinued (no longer available).
