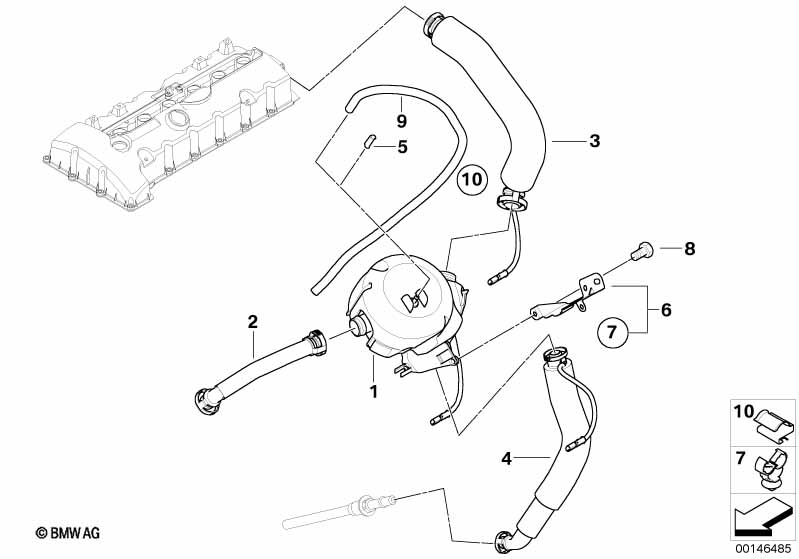

5' E61 530i Crankcase-Ventilation/oil separator
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil separator | 1 | 11617531423 | $101.23 | |||||
| 02 | Vent hose | 1 | 10/2005 | 11617522933 | $34.20 | ||||
| 02 | Vent hose | 1 | 10/2005 | 11617559530 | $85.47 | ||||
| 03 | Vent pipe | 1 | 11157522931 | $50.82 | |||||
| 04 | Return pipe | 1 | 11157567801 | $60.93 | |||||
| 05 | Covering cap | 1 | 11617547229 | $1.12 | |||||
| 06 | Fuel pipe bracket | 1 | 11617572629 | ||||||
| only in conjunction with | |||||||||
| -- | Wire holder, two-place | 1 | 13311714453 | $0.28 | |||||
| 07 | Tubing support | 1 | 61131379351 | $0.68 | |||||
| 08 | Screw | 5X20 | 3 | 11617535849 | $0.75 | ||||
