5' E61 530d Cylinder Head

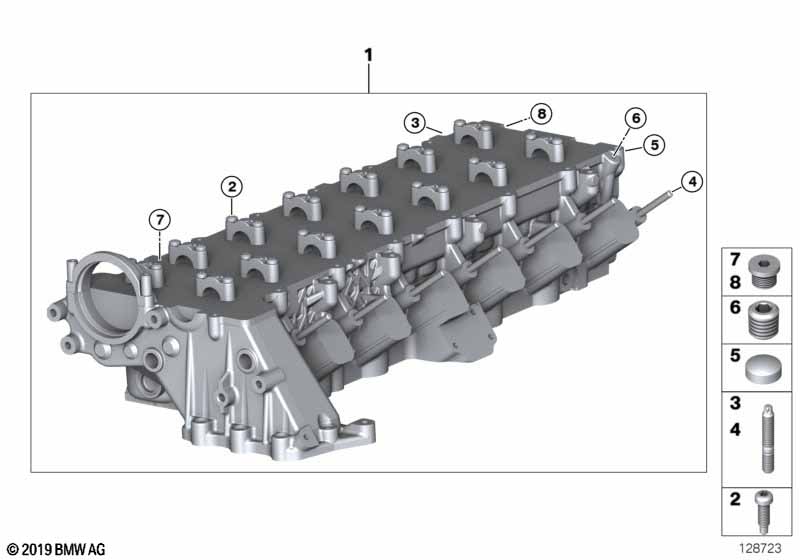

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder Head 1 11127806061 $3536.03 +core
02 Torx bolt M6X30 28 11127806056 $1.07
03 Stud bolt M8X55 12 11127791553 $1.07
04 Stud bolt M7X65-ZNNIV-SI 7 11127806054 $0.65
05 Cover lid D=24MM 2 07119906056 $0.61
06 Screw plug M8X1 2 11127568039 $1.07
07 Screw plug M12X1,5-ST ZNNI 1 11127806343 $3.68
08 Screw plug M14X1,5 2 11127568040 $3.17
Notes
  • +core = plus core charge (possibility of a return of the old part)
