5' E61 530d Timing and valve train-camshaft

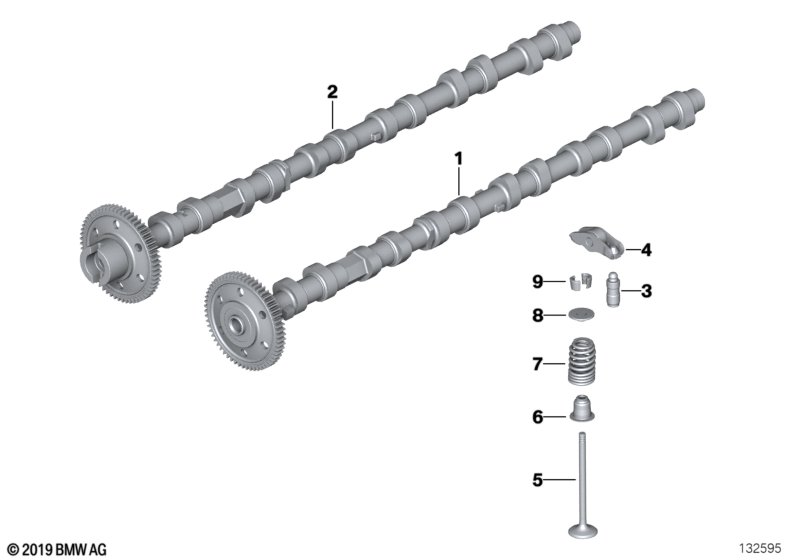

Timing and valve train-camshaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft 1 11317791579 $585.21
02 Camshaft exhaust 1 11317791580 $585.21
03 Alignment element 24 11332249817 $21.42
04 Rocker arm 24 11332248878 $33.04
Exhaust-side
05 Intake/exhaust valve 25,9/5,92MM 12 11342247077 $24.08
Intake-side
05 Intake valve 12 11347799612 $27.75
06 Repair kit valve seal ring 1 11349071732 $70.17
07 Valve spring 24 11342247172 $7.88
08 Upper spring plate 24 11342246523 $3.77
09 Valve collet D=6 48 11341461405 $1.34
