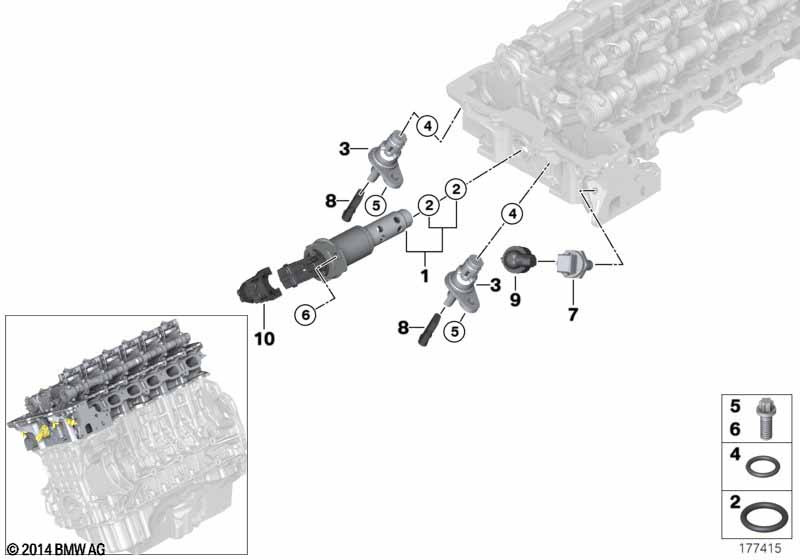

5' E60 LCI 523i Cylinder head, electr. add-on parts

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Solenoid valve (SOLV)		2			11367585425	$118.05
02	Set of gaskets		2			11367548459	$6.85
03	Camshaft position sensor		2			13627525014	$95.30		+core
04	O-ring	17X3	2			12141748398	$1.20
05	Torx screw	M6X16-ZNNIV SI	2		07/2011	07129902813	$0.25
05	Star-socket screw	M6X16-ZNNIV SI	2			07119907463
06	Hex bolt	M6X12-8.8-ZNNIV	2			07119905524	$0.27
07	Temperature sensor coolant / oil		1			13621433076	$16.27
10	Socket housing	2 POL.	1			12521427221	$1.73
	only in conjunction with
--	Socket terminal SLK 2.8 ELA	0,22-0,35MM² AG	1			12521427612	$0.50		SI 2 02 05(194)
--	Protection cap	2 POL.	1			12521732694	$2.10

Notes

• +core = plus core charge (possibility of a return of the old part)
• SI = Service Information
