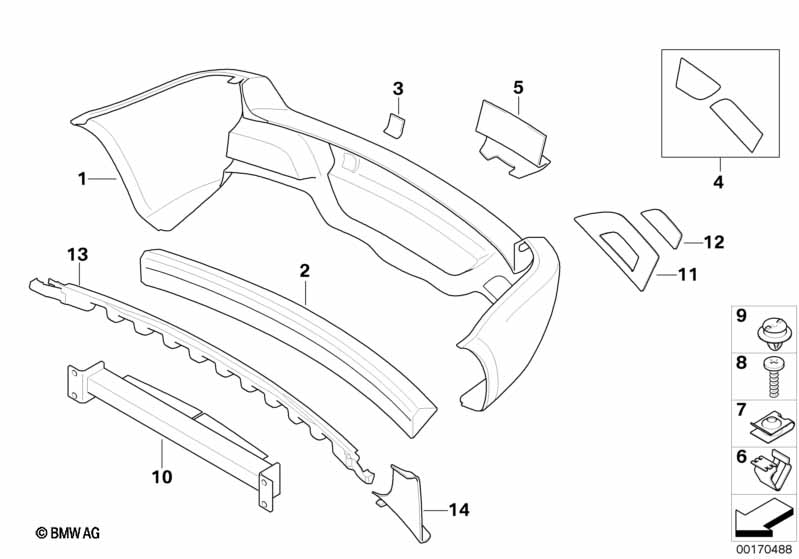

X3 E83 X3 3.0i Trim panel,bumper,rear, aerod.pckage II

Trim panel,bumper,rear, aerod.pckage II
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Park Distance Control (PDC)

S508A=No
01 Bumper trim panel, rear 1 09/2006 51120394860 $753.00 ENDED, +core, EBA 0397778
only in conjunction with
-- Carrier, bumper rear 1 09/2006 51120395315 $205.95 ENDED, +core
For vehicles with
Park Distance Control (PDC)

S508A=Yes
01 Bumper trim panel, rear 1 09/2006 51120394863 $782.00 ENDED, +core, EBA 0397778
only in conjunction with
-- Carrier, bumper rear 1 09/2006 51120395315 $205.95 ENDED, +core
02 Trunk lid cover 1 51130395314 $367.95
03 Cover 1 51110305104 $19.25
04 Covering outer right 1 51120394864 $7.25 ENDED
04 Covering outer left 1 51120394865 $7.25 ENDED
05 Right center covering 1 51120394866 $7.25 ENDED
05 Left center covering 1 51120394867 $7.25 ENDED
05 Cover, towing hitch ECE 1 51120394876 $59.50 +core
06 Clamp 2 51127070204 $0.74
07 Body nut ST4,8-9-ZNS 6 07129901656 $0.25 ENDED
07 Body nut ST4,8-9-ZNS3 6 07129904150 $0.25
08 Sheet metal screw ST4,8X19 2 07119904714 $0.25
09 Clip with seal ring 14 51137065607 $0.74
10 Carrier, bumper rear 1 51120395315 $205.95 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
