X3 E83 X3 3.0i Rear carrier

Rear carrier

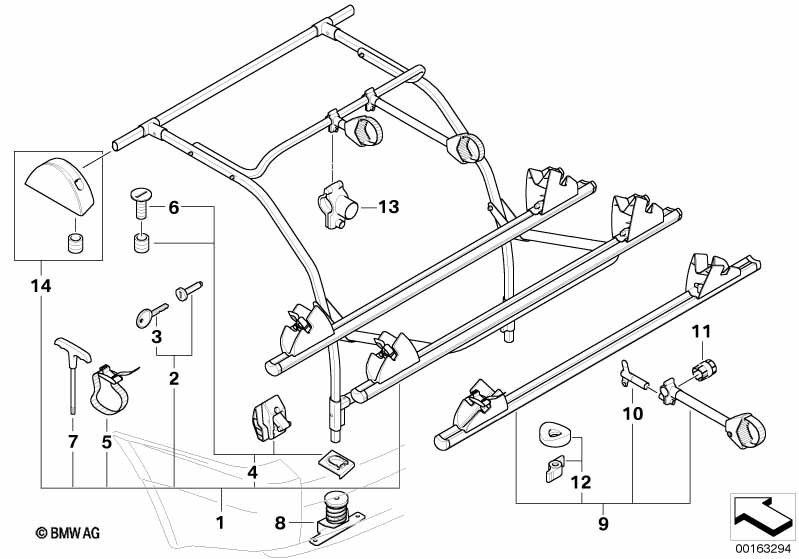

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Aerodynamics components for M Package
and
Body styling
and
Aerodynamics package








SZE1A=No

SZE2A=No

SZE3A=No
For vehicles with
Roof railing
and
M Aerodynamics package
and
Aerodynamics package
Not suitable for SZ aerodynamic pack. I
Not suitable for OA aerodynamic pack.II
---
Important!
Spring element must be installed,
otherwise the rear apron will be damaged

S386A=Yes

S715A=No

S716A=No
01 Rear carrier 1 09/2006 82710147373 $606.00 ENDED, EBA 0307769, EBA 0307773, EBA 0396067, EBA 0420952
only in conjunction with
-- Spr. element for cars w/o towing hitch 1 09/2006 82710394992 $56.50 ENDED, +core
-- Spr. element for cars with towing hitch 1 09/2006 82710395008 $51.50 ENDED, +core
-- Adhesive 1K 50 ML 1 09/2006 82699408866 $14.79
02 Lock cylinder with key 1 82720303536 $24.75
03 Key (Code) CODE 001...041 1 82720144049 $8.50 +core
04 Assembly kit, rear carrier up to 09/2006 1 09/2006 82710307771 $53.50 ENDED, EBA 0307769
only in conjunction with
-- Adhesive 1K 50 ML 1 09/2006 82699408866 $14.79
05 Strap 1 82720154315 $2.50
06 Protective screw 2 82710395316 $0.75 ENDED
07 Torx wrench 1 82790302000 $12.50 ENDED
08 Spr. element for cars w/o towing hitch 1 82710394992 $56.50 ENDED, +core
08 Spr. element for cars with towing hitch 1 82710395008 $51.50 ENDED, +core
09 Upgrade kit 3rd bicycle 1 82710307770 $139.95 ENDED, EBA 0395517
10 Key 1 82720390480 $4.25
11 Adapter 1 82720390018 $1.95 ENDED
12 Parts set 1 82710395323 $1.50 ENDED
13 Fixing clamp 2 82720410487 $10.25 ENDED
14 Rail connection E83 1 82710007383 $40.00 ENDED, EBA 0420952
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
