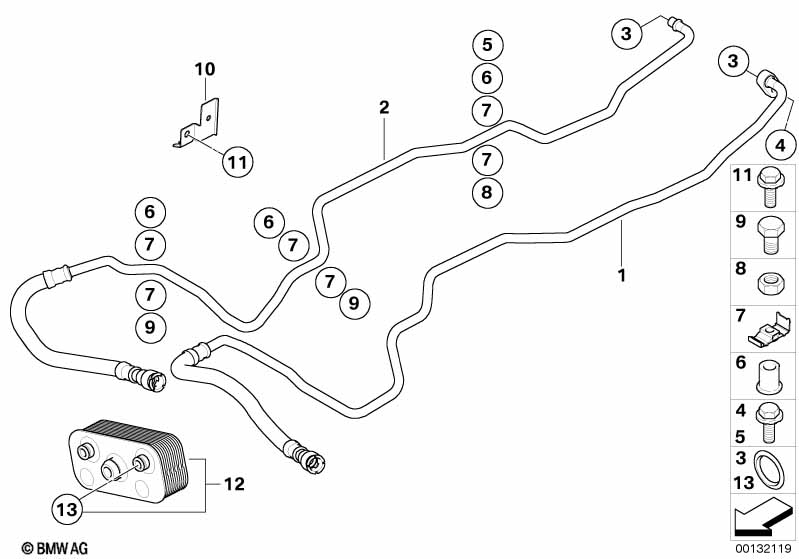

X3 E83 X3 3.0i Oil-cooler pipe/heat exchanger

Oil-cooler pipe/heat exchanger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission

S205A=Yes
01 Oil cooling pipe inlet 1 17223400213 $107.00 +core
02 Oil cooling pipe outlet 1 17223400214 $107.00 +core
03 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
04 Hex bolt with washer M8X28-ZNNIV SI 1 07119905530 $0.71
05 Hex bolt with washer M6X35-U2-8.8 1 07119903001 $0.53
06 Spacer sleeve D6 3 17227798686 $3.32
07 Bracket oil pipe 6 17201712210 $1.02
08 Self-locking hex nut M6 1 08/2004 64509123157 $0.70
08 Hex nut 1 07129906887 $0.56
09 Hex bolt with washer M6X30-U2-ZNS3 2 07119903994 $0.65
10 Bracket oil pipe 1 17227500268 $5.20
11 Hex bolt with washer M8X18-Z1-ZNS3 1 07119902906 $0.65
12 Heat exchanger 1 17227505826 $185.93
13 O-ring 14,5X2,5 2 17111711987 $1.73
Notes
  • +core = plus core charge (possibility of a return of the old part)
