X3 E83 X3 3.0i Vacuum control, exhaust flap

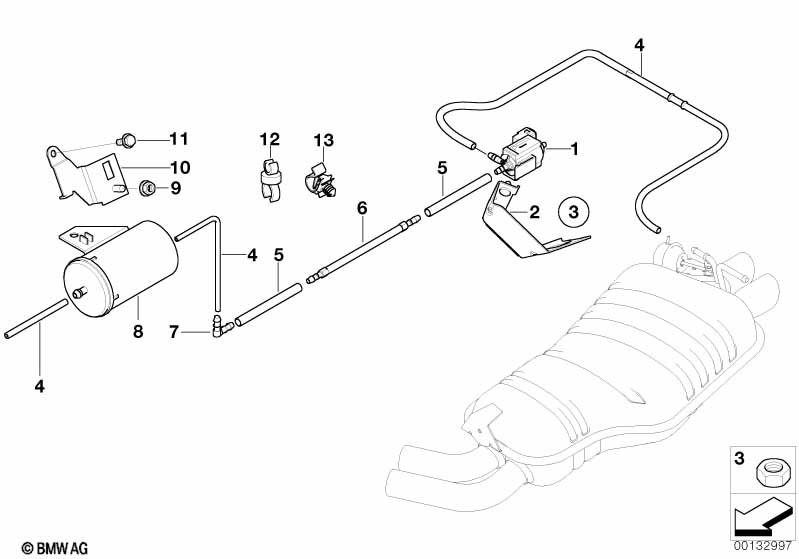

Vacuum control, exhaust flap
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Electr.valve 1 11747810831 $46.70
02 Position number 1 01009056666 ENDED
03 Plastic capnut with washer D=18MM 1 51161943122 $0.39
05 Vacuum hose blue 3,3X1,8 X 11747797082 $17.14
06 Position number 1 01009056666 ENDED
07 Support 1 22116759728 $0.79
08 Vacuum tank 1 18101740207 $24.37
09 Hex nut M8-ZNS3 1 07119904024 $0.20
10 Bracket, vacuum accumulator 1 18107502474 $8.22
11 Hex bolt with washer M8X16 1 07119905528 $0.62
12 Holder 1 62121364482 $1.17
13 Clip retainer 1 61138368029 $0.43
Notes
  • ENDED = the part has been discontinued (no longer available).
