X3 E83 X3 3.0i Gear shift Steptronic,all-wheel-drive

Gear shift Steptronic,all-wheel-drive

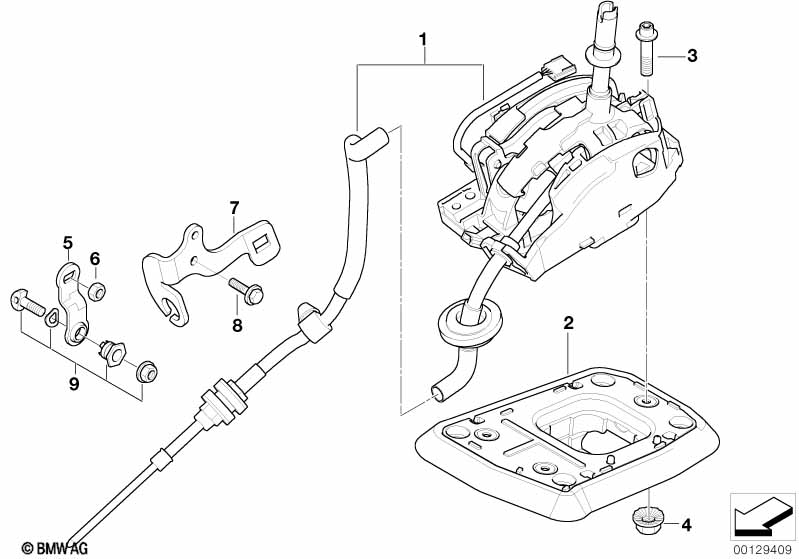

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i INTERLOCK CABLE
HG 32
ASSEMBLY
COMPRISES
STEPTRONIC SWITCH
For vehicles with
Automatic transmission






S205A=Yes
01 Gearshift Steptronic 1 25163420337 $469.08 +core
No further intervention permitted
02 Adapter plate 1 25163404178 $30.59
03 Isa screw with washer M6X35-8.8-ZNS3 3 25167571260 $0.80
04 Self-locking hex nut M6 4 07/2007 51417053138 $0.38
05 Selector lever 1 24517570818 $10.32 +core
06 Self-locking hex nut M8X1 1 24517542700 $0.27
07 Support bracket 1 24503417145 $5.90
08 Hex bolt with washer M6X16-U1-8.8 2 07119904524 $0.25
09 Clamping parts set 1 24500429180 $18.95
Notes
  • +core = plus core charge (possibility of a return of the old part)
