X3 E83 LCI X3 2.0d Diesel part.filter sens./mounting parts

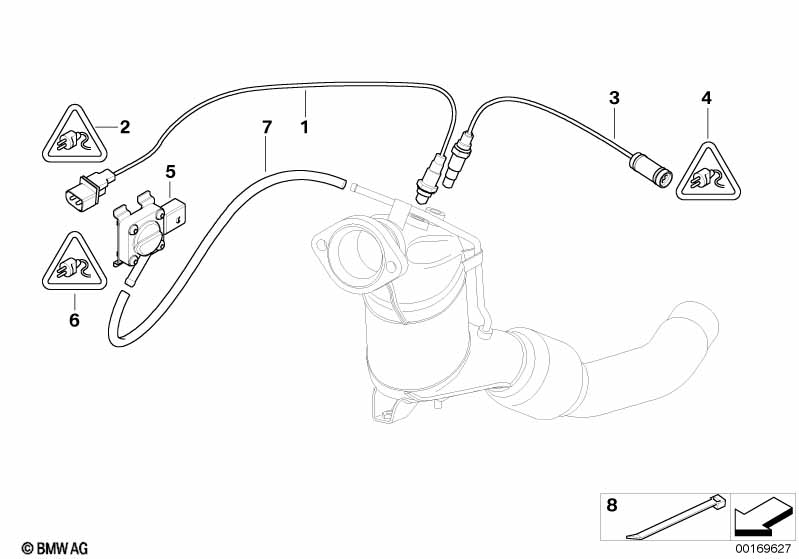

Diesel part.filter sens./mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oxygen sensor 1 13627791592
02 Universal socket housing MLK uncoded 6 POL. /MLK 1.2 1 12527505669 $5.73
only in conjunction with
-- Contact bushing MLK 1,2 with cable 0,25- 0,5MM²/AG 6 12520143438 $4.00
For vehicles with
EU3 exhaust emissions standard

S169A=No
03 Temperature sensor 1 13627809156
05 Pressure sensor 1 13627789219 $163.45
06 Plug housing 3 POL. 1 12527508154
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 1 12521427612 $0.50 SI 2 02 05(194)
07 Hose 1 13627801743
08 Cable tie L=200MM/B=3,6MM 3 61131367599 $0.43
Notes
  • SI = Service Information
