X3 E83 LCI X3 3.0sd Oil pan/oil level indicator

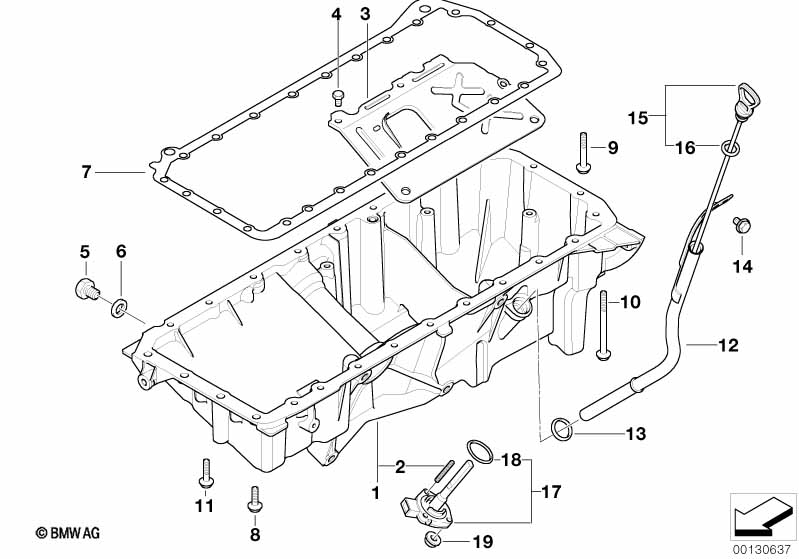

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137806220 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
05 Screw plug M12X16 1 11137535106 $3.68
06 Gasket ring A12X17-CU 1 07119963151 $0.57
07 Gasket Steel 1 11137802669 $48.50
Required for repair
-- Torx bolt M6X22 17 11137800619 $0.67
-- Torx bolt M8X30 4 11137800621 $1.08 ENDED
-- Torx bolt M6X60-ZNNIV SI 2 11137800622 $1.08
-- Torx bolt M6X100 2 11137800623 $1.65
08 Torx bolt M6X22 17 11137800619 $0.67
09 Torx bolt M6X60-ZNNIV SI 2 11137800622 $1.08
10 Torx bolt M6X100 2 11137800623 $1.65
11 Torx bolt M8X30 4 10/2015 11137800621 $1.08 ENDED
11 ASA-Bolt M8X30 4 11138592611
12 Guide tube 1 11437791132
13 O-ring 14X3 1 11437794698 $1.19
14 Hex bolt with washer M6X14-U1-8.8 1 07119905525 $0.47
15 Dipstick 1 11437802926
16 O-ring 9X2,2 2 11431717666 $0.73
17 Oil levelling sensor 1 12617508003 $163.50
18 Gasket ring 1 12611744292 $6.42
19 Hex nut BM6-8-ZNNIV SI 3 07129905411 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
