3' E90 LCI 330i Install.kit, independent heater

Install.kit, independent heater
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
Mode of operation: bypass heating
circuit w/o engine heat-up
Note for diesel cars: The auxiliary
heating system retrofit kits are not
suitable for rape methyl ester (RME).
Note on operation: Parked-car heater can
be operated without additional operating
element via CID or Professional radio
For vehicles with
  Automatic air conditioning
  and
  M Aerodynamics package
  and
  Radio frequency 434 MHz
  and
  Radio frequency 315 MHz
and
  Body styling
  and
  Aerodynamics package
  and
  BMW Performance Aerodynamics Package
  and
  Power Kit
















S534A=Yes

S715A=No

S874A=No

S876A=No

SZE2A=No

SZE3A=No

SZPHA=No

SZS3A=No
For vehicles with
Navigation system Business
or
Navigation system Professional
or
Radio BMW Professional
If no 90 Ah AGM battery is installed in
the car, it must be retrofitted.

S606A=Yes

S609A=Yes

S663A=Yes

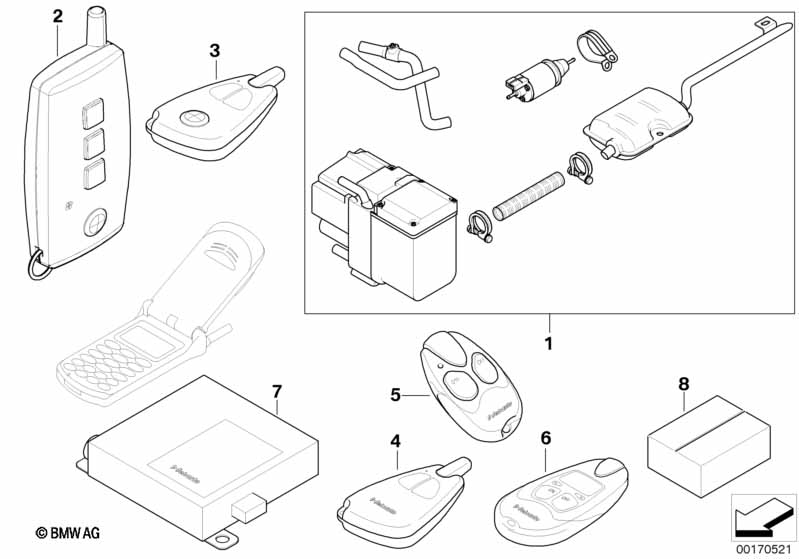

01 Install.kit, independent heater 1 09/2008 64500417552 ENDED, EBA 0404558, EBA 0411375, EBA 0417854
only in conjunction with
-- Cover, bottom left 1 09/2008 51717172541
Can additionally be operated with
Telestart handheld transmitter
and/or retrofit kit, radio remote
control T90
or retrofit kit for RF remote control
T91
or retrofit kit, radio remote control
T100
and/or retrofit kit, control unit
ThermoCall TC1.1
Not approved for installation in
Russian-market vehicles (no frequency
approval).
02 Telestart handheld transmitter 1 61316934807 ENDED
only in conjunction with
-- Remote control transmitter battery 6V LITHIUM 1 61316912986 $33.68
03 Telestart handheld transmitter T93 1 64129144646 ENDED
03 Telestart handheld transmitter T95 1 64129196785
04 Retrofit kit, remote cntrl,indep.heating T90 1 64500392971 ENDED, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 2165615
Only in conjunction with position 8
With checkback for received switch-on
signal
05 Retrofit kit, remote cntrl,indep.heating T91 1 64500435769 EBA 0143722, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 0406619, EBA 0411375, EBA 0443099, EBA 2165615, EBA 2296204, EBA 5A08879
Only in conjunction with position 8
With checkback for received switch-on
signal
06 Retrofit kit, remote cntrl,indep.heating T100 1 64500410385 EBA 0395829, EBA 0404558, EBA 0406619, EBA 0411374, EBA 0411375, EBA 0433094, EBA 2296204
Only in conjunction with position 8
With checkback for received switch-on
signal
and automatic heater timer HTM
07 Thermo Call switch unit retrofit kit TC1.1/DE 1 64500395010 ENDED, EBA 0395829, EBA 0404558, EBA 0411375
Only in conjunction with position 8
07 Thermo Call switch unit retrofit kit TC1.1/EN 1 64500395012 ENDED, EBA 0395829, EBA 0404558
Only in conjunction with position 8
07 Thermo Call switch unit retrofit kit TC2/EN 1 64500433515 ENDED, EBA 0395829, EBA 0404558
Only in conjunction with position 8
08 Aux.heating control element upgrade kit 1 64500395920 ENDED, EBA 0395133, EBA 0395829, EBA 0411374, EBA 0433094
kit is only required once in combination
of remote control and ThermoCall
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
