3' E90 LCI 330i Install.kit, independent heater

Install.kit, independent heater

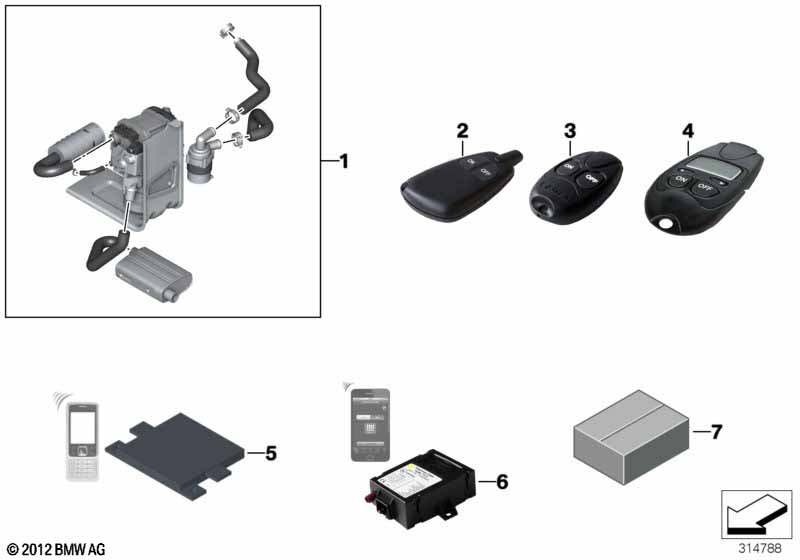

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
Mode of operation: inline heating
circuit with engine heat-up
Note for diesel cars: The auxiliary
heating system retrofit kits are not
suitable for rape methyl ester (RME).
Note on operation: It is not possible
to control the
parked-car heater using the
CID or Professional Series radio
For vehicles with
Body styling
and
Aerodynamics package
and
BMW Performance Aerodynamics Package
and
Power Kit

















SZE2A=No

SZE3A=No

SZPHA=No

SZS3A=No
Mode of operation: bypass heating
circuit w/o engine heat-up
If no 90 Ah AGM battery is installed in
the car, it must be retrofitted.
01 Install.kit, independent heater 1 09/2008 64500417597 EBA 0404559, EBA 0411375, EBA 0417854
only in conjunction with
-- Upgrade kit, bypass coolant circuit 1 09/2008 64502147028 EBA 0404559, EBA 0404560
additionally required parts:
Retrofit kit, radio remote control T90
or retrofit kit for RF remote control
T91
or retrofit kit, radio remote control
T100
and/or retrofit kit for
ThermoCall switching unit
Not approved for installation in
Russian-market vehicles (no frequency
approval).
02 Retrofit kit, remote cntrl,indep.heating T90 1 64500392971 ENDED, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 2165615
With checkback for received switch-on
signal
03 Retrofit kit, remote cntrl,indep.heating T91 1 64500435769 EBA 0143722, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 0406619, EBA 0411375, EBA 0443099, EBA 2165615, EBA 2296204, EBA 5A08879
With checkback for received switch-on
signal
04 Retrofit kit, remote cntrl,indep.heating T100 1 64500413352 EBA 0404560, EBA 0406619, EBA 0411375, EBA 2165615
With checkback for received switch-on
signal
and automatic heater timer HTM
05 Thermo Call switch unit retrofit kit TC2/DE 1 64500410817 ENDED, EBA 0150770, EBA 0150774, EBA 0150778, EBA 0150779, EBA 0301497, EBA 0302759, EBA 0404559, EBA 0404560, EBA 0411375
05 Thermo Call switch unit retrofit kit TC2/EN 1 64500410819 ENDED, EBA 0150770, EBA 0150774, EBA 0150778, EBA 0150779, EBA 0301497, EBA 0302759, EBA 0404560, EBA 0411375
06 Thermo Call switch unit retrofit kit TC3 1 64502334000 EBA 0395829, EBA 2296204, EBA 2338748
only in conjunction with
-- Temperature sensor 1 61310404639
Note:
A SIM card (e.g., a prepaid card) not
included in the package contents is
required to operate the TC3. The
customer must supply this SIM card
before the start of the service
installation process.
SIM card specifications: 1.8V or 3V SIM
card from a communications service
provider that supports mobile radio
standard GSM 900/1800.
07 Independent heater diagn. adapter 1 64120414285
Recommended for diagnosing and reading
out stored error codes on the Thermo
Top C/E/
V/EVO auxiliary heaters that are not
controlled
through a data bus.
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
