3' E90 LCI 330i Retrofit kit, towing hitch

Retrofit kit, towing hitch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Replacement of the "fan cowl with
fan" may be required.
If the diagram for Main Assembly Group
17 indicates that "fan cowl with fan"
is part of
the special equipment for trailer
then this part number must be ordered
and installed.
If no part number is indicated as
trailer coupling special equipment, then
it will not be necessary to replace the
"fan cowl with fan."
Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
LHD vehicles with N54 engine built from
03/08 onward also require the heat
shield 31 14 6 774 592.
For vehicles with
National version Australia

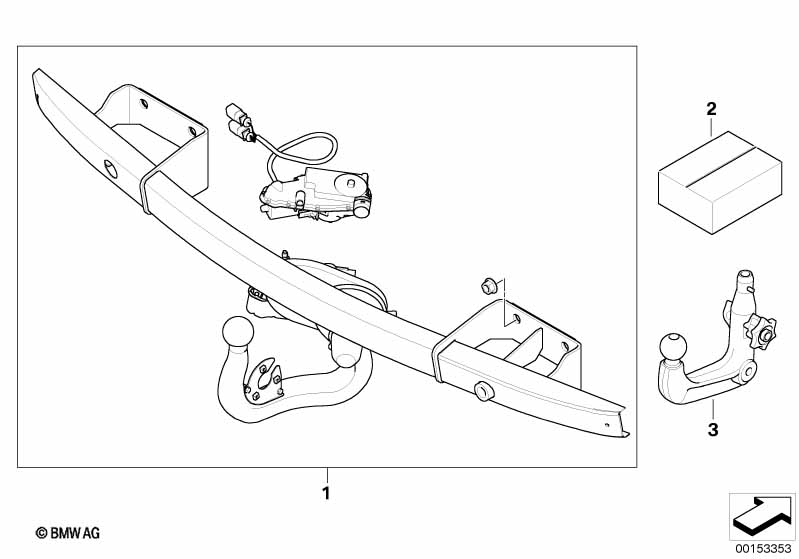

01 Scdel. of tow.hitch+detach.ball head 1 04/2009 71606791150 +core, EBA 2156815
01 Towing hitch, swiveling 1 04/2009 71606791155 +core, EBA 2156816
01 Trailer hitch with fixed ball head 1 04/2009 71606791156 +core, EBA 2156815
only applies to
Trailer coupling, swiveling
02 Retrofit kit, electr. additional parts 1 04/2009 71602156303 ENDED, EBA 2156816
only applies to
Trailer hitch with fixed ball head
Towing hitch, detachable
02 Retrofit kit, electr. additional parts 1 04/2009 71602156301 EBA 2156815
only applies to
Towing hitch, detachable
03 Removable ball 1 04/2009 71606781658 +core
03 Storage pocket socket ball 1 04/2009 71606758766 +core
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
