3' E90 LCI 330i Front PDC upgrade

Front PDC upgrade
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Not suitable for Sport Package
Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Business
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S606A=Yes

S494A=No

S415A=No

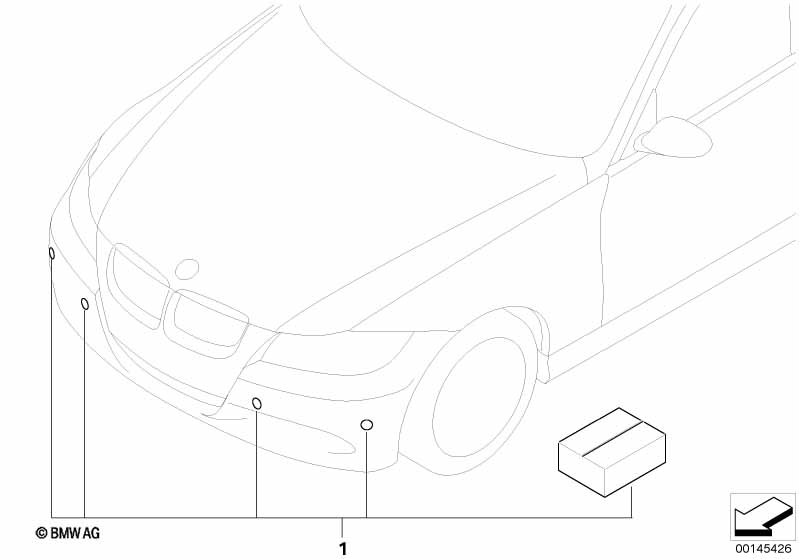

01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear

S663A=Yes

S507A=Yes

S494A=Yes

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear

S663A=Yes

S507A=Yes

S494A=Yes

S415A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear

S663A=Yes

S507A=Yes

S494A=No

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear

S663A=Yes

S507A=Yes

S494A=No

S415A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 1 09/2008 66202180146
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Professional
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S609A=Yes

S494A=No

S415A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Business
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S606A=Yes

S494A=Yes

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Business
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S606A=Yes

S494A=Yes

S415A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Business
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S606A=Yes

S494A=No

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Professional
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S609A=Yes

S494A=Yes

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Professional
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S609A=Yes

S494A=Yes

S415A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Park Distance Control (PDC), rear
and
Navigation system Professional
and
Seat heating driver/passenger
and
Sun-blind, rear

S507A=Yes

S609A=Yes

S494A=No

S415A=Yes
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear
and
Navigation system Professional
and
Navigation system Business

S663A=No

S507A=Yes

S494A=No

S415A=No

S609A=No

S606A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
Switch unit, center console
Front plate of controls for automatic
climate control or front plate of
controls for air conditioner
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear
and
Navigation system Professional
and
Navigation system Business

S663A=No

S507A=Yes

S494A=Yes

S415A=Yes

S609A=No

S606A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear
and
Navigation system Professional
and
Navigation system Business

S663A=No

S507A=Yes

S494A=Yes

S415A=No

S609A=No

S606A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear
and
Navigation system Professional
and
Navigation system Business

S663A=No

S507A=Yes

S494A=No

S415A=Yes

S609A=No

S606A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
For vehicles with
Radio BMW Professional
and
Park Distance Control (PDC), rear
and
Seat heating driver/passenger
and
Sun-blind, rear
and
Navigation system Professional
and
Navigation system Business

S663A=No

S507A=Yes

S494A=No

S415A=No

S609A=No

S606A=No
01 Retrofit kit, Park Distance Control, frt 1 09/2008 66200399629 $118.95 EBA 0399631
only in conjunction with
-- Ultrasonic sensor, color code 4 09/2008 66202180146
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Cover 1 09/2008 51459120979 $25.22 +core
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
-- Set of mounts for PDC sensor, front 1 09/2008 51117213857 $16.65
additionally required parts:
Switch unit, center console
only in conjunction w/PDC control module
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)

Copyright © RealOEM.com
