3' E90 LCI 330i Cooling System Water Hoses

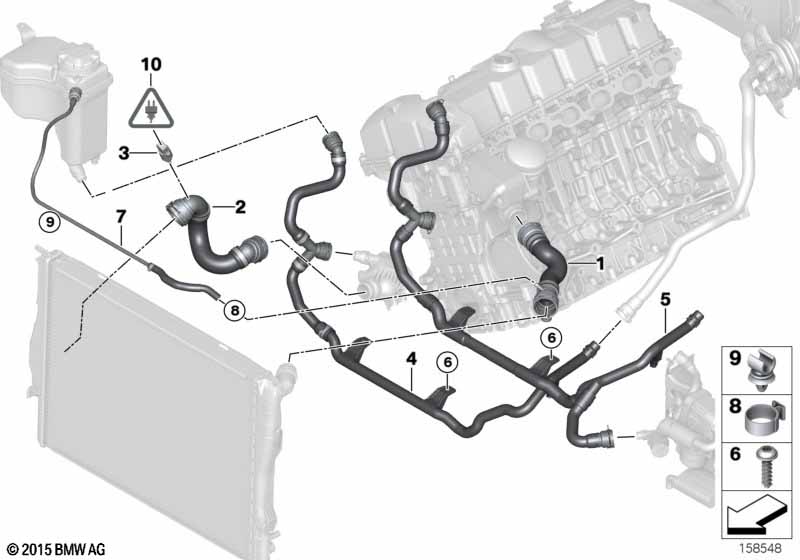

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Parts descriptions which end with a
hyphen ( - ) are supplemented with the
description comment (see parts
information).
For vehicles with
Automatic transmission





S205A=No
01 Hose from engine to radiator, top 1 17127531579 $43.58
02 Hose from radiator bottom - thermostat 1 17127564478 $56.20 +core
04 Line, heater return - thermostat 1 17127548223 $107.30 +core
consisting of black plastic tube and
rubber hose
For vehicles with
Auxiliary heating

S536A=Yes
05 Line, heater return - thermostat 1 17127548225 $107.30 +core
consisting of black plastic tube and
rubber hose
06 Screw self-tapping M6X34 3 17127545785 $0.78
07 Venting line radiator top 1 17127618510 +core
08 Hose clamp L12-14,5 1 32411712735 $0.62
09 Clip D=8MM 1 13311738201 $0.62
Notes
  • +core = plus core charge (possibility of a return of the old part)
