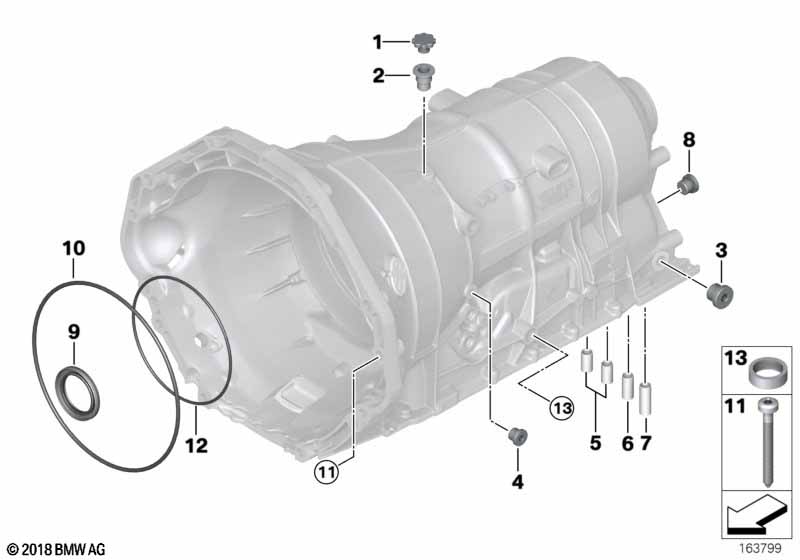

3' E90 LCI 330i GA6HP19Z housing with mounting parts

GA6HP19Z housing with mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vent cover 1 09/2010 24101422142 $1.95
02 Vent pipe 1 09/2010 24101422141 $5.93
03 Screw Plug With Gasket Ring M18X1,5 1 09/2010 24117552349 $7.65
04 Screw Plug With Gasket Ring M10X1 1 09/2010 24117552351 $4.60
05 Sealing sleeve L=31,20MM 2 09/2010 24107536339 $10.71
06 Sealing sleeve L=35,50 1 09/2010 24107536340 $10.71
07 Sealing sleeve L=48,90 1 09/2010 24107536341 $10.71
08 Screw Plug With Gasket Ring M14X1,5 1 09/2010 24007571205 $6.30 +core
09 Shaft seal 45X58X7 1 09/2010 24317519352 $13.53
10 O-ring 194X3 1 09/2010 24317536355 $7.33
11 Torx screw with round seal ring M6X52 11 09/2010 24317588743 $1.95
12 O-ring 128X3 1 09/2010 24201217321 $9.32
13 Shaft seal 10X18X5 1 09/2010 24147571213 $5.20
Notes
  • +core = plus core charge (possibility of a return of the old part)
