3' E90 LCI 330i Spare tire system

Spare tire system

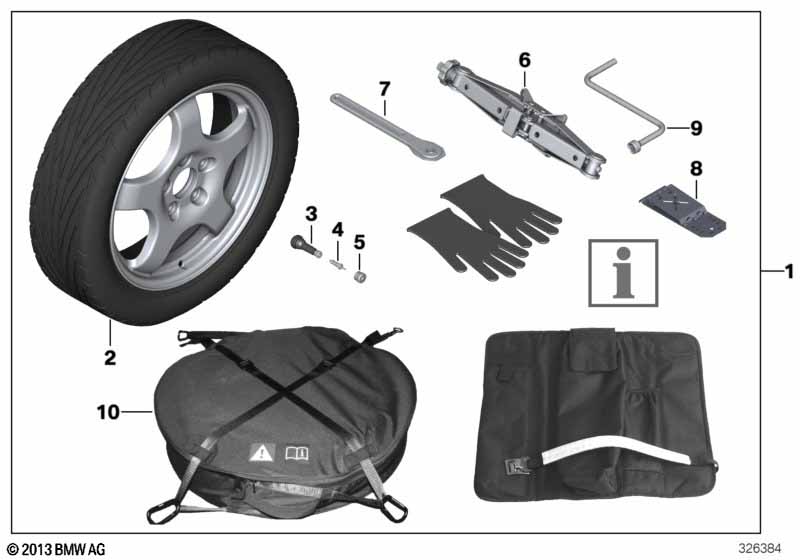

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Luggage compartment package
or
Storage compartment package

S418A=Yes

S493A=Yes
01 Spare tire system 125/80R17 1 03/2008 36112159860 ENDED, EBA 2159010
No spare tire recess present.
Attach to the four mounts for
transport on the floor of the
trunk.
02 Emergency wheel, light alloy 3,5X17 ET:8 1 36116788203
03 Rubber valve L=42,5MM 1 36121116326 $3.30
04 Valve 1 36141095389 $1.38
05 Valve caps 1 36121120779 $0.60
06 Lifting jack 1 71126799169
07 Actuating ratchet for vehicle jack 1 71126769151
08 Chock 1 71121507292 $11.50
09 Crank 1 71121179953 $14.56
10 Case for spare tire 1 51470444689 +core, EBA 0444788
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
