3' E90 LCI 330i Roof
Sponsored links
Sponsored links

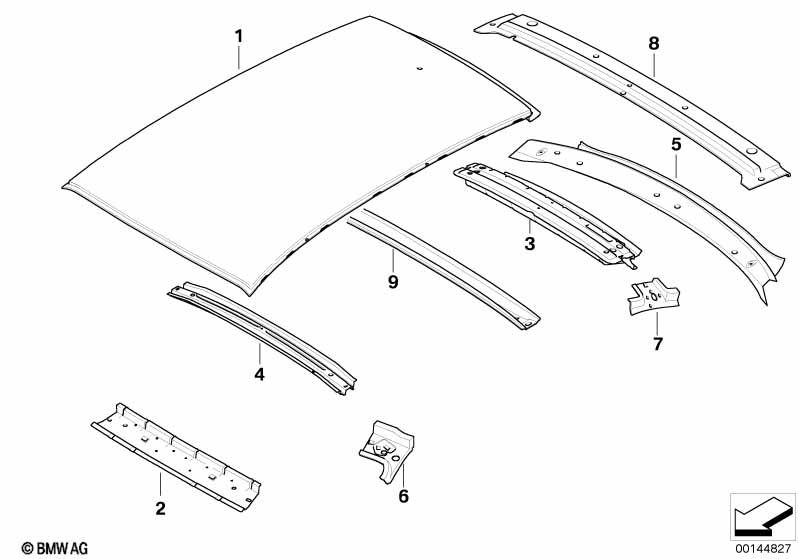

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. Suitable for vehicles with and without Roof antenna |
|||||||||
| 01 | Roof cover | 1 | 41317179843 | $960.60 | |||||
| Required for repair | |||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | ||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83192157298 | |||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | |||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Punch rivet N4 | 14 | 83192457307 | ||||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| For vehicles with Glass roof, electrical Performed using adhesive bonding/ riveting repair method. Suitable for vehicles with and without Roof antenna |
S403A=Yes |
||||||||
| 01 | Roof covering lifting-sliding roof | 1 | 41317179844 | $1102.16 | |||||
| Required for repair | |||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | ||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83192157298 | |||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | |||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | EBA 2446652 | ||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| -- | Punch rivet N4 | 14 | 83192457307 | ||||||
| If necessary, with Empty housing for roof antenna |
|||||||||
| 02 | Upper apron | 1 | 41327144965 | $65.22 | |||||
| 03 | Rear window frame upper part | 1 | 41327144963 | $32.62 | |||||
| 04 | Roof bow | 1 | 41237144964 | $32.33 | |||||
| 05 | Rear window frame bottom part | 1 | 41327145345 | $22.20 | |||||
| 06 | Left upper apron reinforcement | 1 | 41217144947 | $7.70 | |||||
| 06 | Right upper apron reinforcement | 1 | 41217144948 | $7.70 | |||||
| 07 | Reinforcement,rear window frame top left | 1 | 41217144961 | $4.86 | |||||
| 07 | Reinforcement,rear window frame top rght | 1 | 41217144962 | $4.86 | |||||
Notes
- EBA = Einbauanleitung (Installation instructions)
