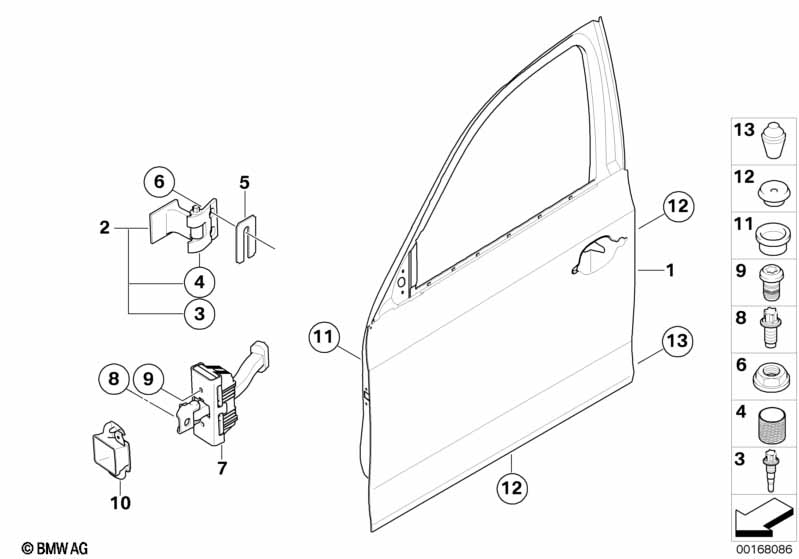

3' E90 LCI 330i Front door-hinge/door brake
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41007203643 | $543.60 | |||||
| 01 | Door front right | 1 | 41007203644 | $543.60 | |||||
| 02 | Door hinge, front top left/bottom right | 2 | 41517046050 | $35.79 | |||||
| 02 | Door hinge, front bottom left/top right | 2 | 41517046055 | $29.14 | |||||
| 03 | Hinge pin | M10X1,25 | 4 | 51217069748 | $2.80 | ||||
| 04 | Hinge bush | 4 | 41517362330 | ||||||
| 05 | Shim | 0,5MM | X | 41517202050 | $1.62 | ||||
| 06 | Hex nut with plate | M8 | 8 | 07146970706 | $1.18 | ||||
| 07 | Front door brake | 2 | 51217259243 | ||||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | ||||
| 09 | Torx-bolt with washer | ISA M6X10 | 4 | 07147184168 | $0.62 | ||||
| 10 | Front door brake gasket | 2 | 51217060190 | $9.96 | |||||
| 11 | Protection cap | SCHWARZ | 2 | 51218177670 | $0.33 | ||||
| 12 | Blind plug | D=20MM | 2 | 07147140850 | $0.19 | ||||
| 13 | Absorber | 2 | 51717164838 | $1.13 |
