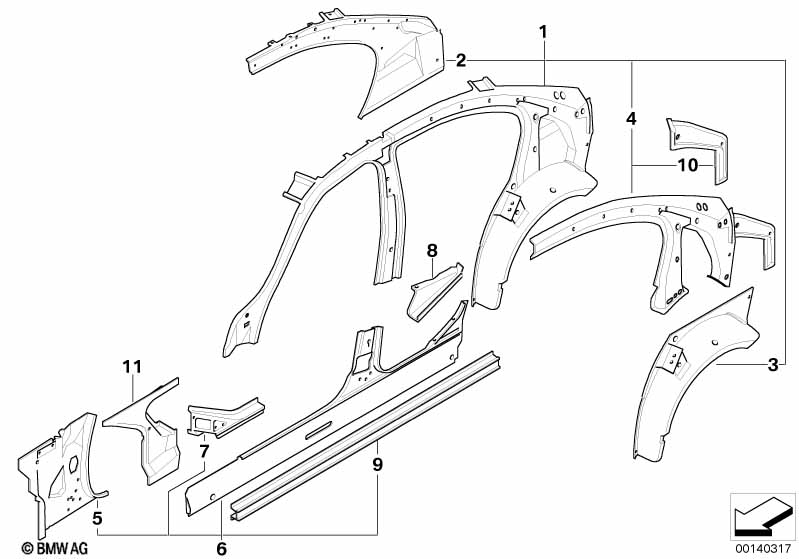

3' E90 LCI 330i Single components for body-side frame
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41217277341 | +core | |||||
| 01 | Right interior side frame | 1 | 41217277342 | +core | |||||
| 02 | C-pillar, inner top left | 1 | 41217144951 | $61.27 | |||||
| 02 | C-pillar, inner top right | 1 | 41217144952 | $61.27 | |||||
| 03 | Wheel arch outer rear left | 1 | 41217144955 | $170.62 | |||||
| 03 | Wheel arch outer rear right | 1 | 41217144956 | $170.62 | |||||
| 04 | C-pillar reinforcement, left | 1 | 41217144959 | $56.93 | |||||
| 04 | C-pillar reinforcement, right | 1 | 41217144960 | $56.93 | |||||
| 05 | Left interior column A | 1 | 41217145331 | $110.58 | |||||
| 05 | Right interior column A | 1 | 41217145332 | $110.58 | |||||
| 06 | Left side member | 1 | 07/2010 | 41117145337 | $280.62 | ||||
| 06 | Right side member | 1 | 07/2010 | 41117145338 | $280.62 | ||||
| 06 | Left side member | 1 | 07/2010 | 41217277347 | |||||
| 06 | Right side member | 1 | 07/2010 | 41217277348 | |||||
| 07 | Reinforcement column A inside left | 1 | 41217145333 | $34.45 | |||||
| 07 | Reinforcement column A inside right | 1 | 41217145334 | $34.45 | |||||
| 08 | Reinforcement for side member, left | 1 | 41117157729 | $33.25 | |||||
| 08 | Reinforcement for side member, right | 1 | 41117157730 | $33.25 | |||||
| 09 | Top, side member, left | 1 | 41117145341 | $127.44 | |||||
| 09 | Top, side member, right | 1 | 41117145342 | $127.44 | |||||
| 10 | Tension band column C, left | 1 | 41217144957 | $5.37 | |||||
| 10 | Tension band column C, right | 1 | 41217144958 | $5.37 | |||||
| 11 | Connect.plate f.left side panel frame | 1 | 41217145339 | $40.22 | |||||
| 11 | Connect.plate f.right side panel frame | 1 | 41217145340 | $40.22 |
Notes
- +core = plus core charge (possibility of a return of the old part)
