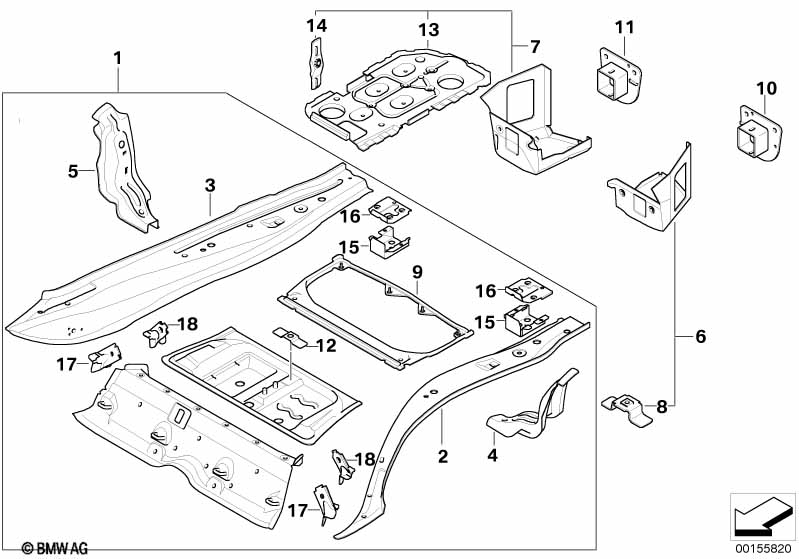

3' E90 LCI 330i Mounting parts for trunk floor panel
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor, upper part | 1 | 41117186779 | $552.42 | |||||
| Required for repair | |||||||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| 02 | Side member, top left | 1 | 41117145323 | $128.33 | |||||
| 03 | Side member, top right | 1 | 41117145324 | $128.33 | |||||
| 04 | Support for frame side member, left | 1 | 41117185249 | $42.51 | |||||
| 05 | Support for frame side member, right | 1 | 41117185250 | $42.51 | |||||
| 06 | Trunk floor left | 1 | 41117145311 | $110.90 | |||||
| 07 | Trunk floor right | 1 | 41117145312 | $166.34 | |||||
| 08 | Audio universal bracket | 4 | 41147176125 | $3.37 | |||||
| Performed using adhesive bonding/ riveting repair method. |
|||||||||
| 09 | Trunk floor frame | 1 | 41137178135 | $93.80 | |||||
| Required for repair | |||||||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | ||||
| -- | Body adhesive K5 | 195 ML | 1 | 83192157298 | |||||
| -- | Punch rivet N5 | 8 | 83192158079 | $0.39 | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | EBA 2446652 | ||||
| 10 | Mount, bumper left | 1 | 41117173647 | $48.68 | |||||
| 11 | Mount, bumper right | 1 | 41117173648 | $48.68 | |||||
| 12 | Bracket for components | 1 | 41137145320 | $1.58 | |||||
| 13 | Battery tray | 1 | 41117178134 | $28.73 | |||||
| 14 | Bracket for battery strap, front | 1 | 41117178138 | $2.23 | |||||
Notes
- EBA = Einbauanleitung (Installation instructions)
