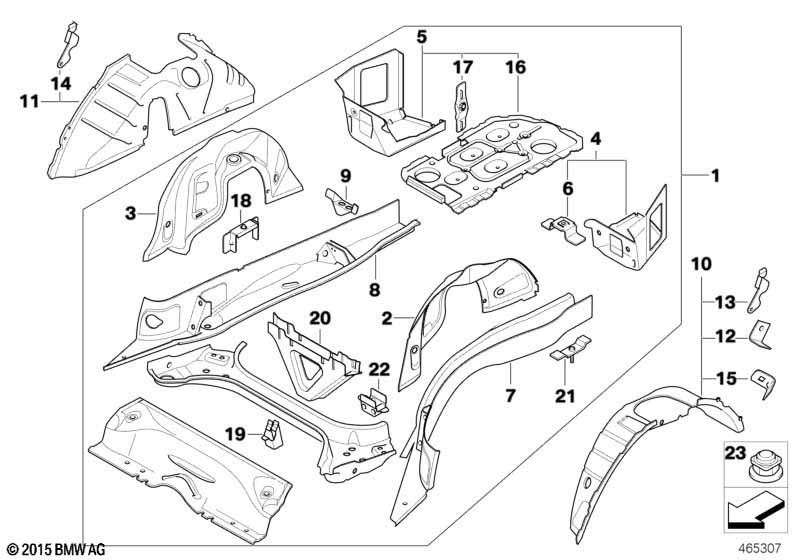

3' E90 LCI 330i Floor parts rear exterior
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 41117145315 | $822.41 | |||||
| 02 | Support, wheelhouse left | 1 | 41147137577 | $45.38 | |||||
| 03 | Support, wheelhouse right | 1 | 41147137578 | $45.38 | |||||
| 04 | Trunk floor left | 1 | 41117145311 | $110.90 | |||||
| 05 | Trunk floor right | 1 | 41117145312 | $166.34 | |||||
| 06 | Audio universal bracket | 1 | 41147176125 | $3.37 | |||||
| 07 | Left side member | 1 | 41117145303 | $89.90 | |||||
| 08 | Right side member | 1 | 41117145304 | $89.90 | |||||
| 09 | Holder, brake hose | 1 | 41117157719 | $3.23 | |||||
| 10 | Rear left wheelhouse, inner half | 1 | 09/2009 | 41147137573 | $113.75 | ENDED | |||
| 10 | Rear left wheelhouse, inner half | 1 | 41002993093 | ENDED | |||||
| 10 | Rear left wheelhouse, inner half | 1 | 41147460557 | ||||||
| If necessary, with Pos. 12 Pos. 13 Pos. 15 Pos. 23 |
|||||||||
| 11 | Rear right wheelhouse, inner half | 1 | 41147137574 | $113.75 | ENDED | ||||
| 11 | Rear right wheelhouse, inner half | 1 | 41147460556 | ||||||
| If necessary, with Pos. 14 |
|||||||||
| 12 | Bracket CD-changer | 1 | 41147157720 | $7.98 | |||||
| 13 | Holder, backrest, left | 1 | 41147145327 | $2.17 | |||||
| 14 | Holder, backrest, right | 1 | 41147145328 | $2.17 | |||||
| 15 | Bracket, optical fiber cable | 1 | 41007145343 | $1.58 | |||||
| 16 | Battery tray | 1 | 41117178134 | $28.73 | |||||
| 17 | Bracket for battery strap, front | 1 | 41117178138 | $2.23 | |||||
| 18 | Bracket for battery strap at rear | 1 | 41117178137 | $2.40 | |||||
| 23 | Earth pin | M6X12 | 1 | 41118367249 | $1.85 | ENDED | |||
| 23 | Earth pin | M6X12 | 1 | 41248185432 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
