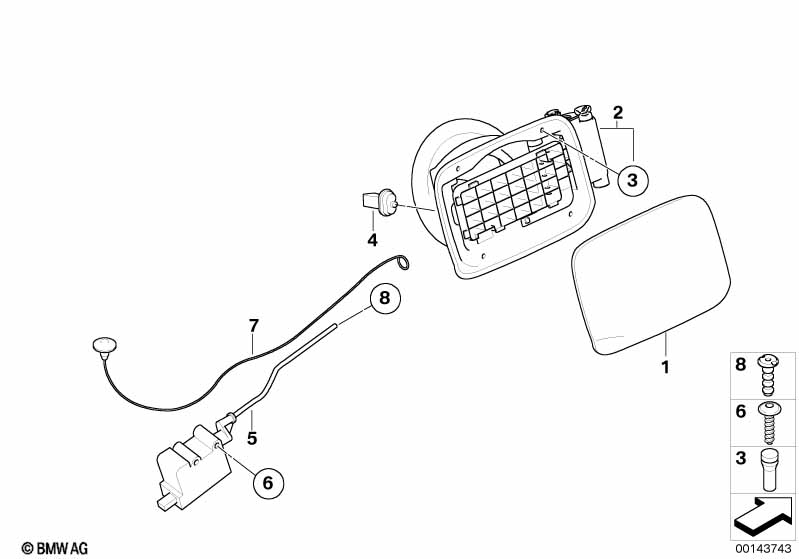

3' E90 LCI 330i Fill-in flap

Fill-in flap
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fill-in flap 1 51177060692 $27.52
02 Cover pot 1 51177073961 $39.63
03 Plug 4 51177044256 $1.02
04 Buffer stop with ejector 1 51178228939 $7.63
05 Filler flap actuator 1 03/2007 67116987632 $57.47
05 Filler flap actuator 1 03/2007 67116985880 $57.47
06 Torx-bolt for plastic material L=16MM 2 07146958583 $0.25
07 Emergency mechanism 1 51257131748 $3.57
08 Rubber grommet 1 51257075026 $3.48
