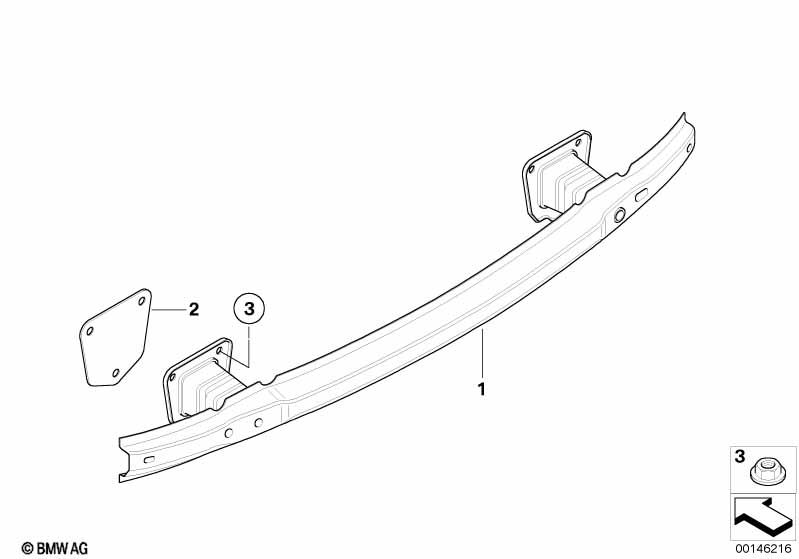

3' E90 LCI 330i Carrier, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | The bumper bracket must be sealed with cavity sealant, see Repair Instructions REP-51 11 050 and REP-51 12 050. |
||||||||
| For vehicles with National version Korea |
L802A=Yes |
||||||||
| 01 | Carrier, bumper rear | 1 | 51127058510 | $208.63 | +core | ||||
| For vehicles with Trailer coupling not suitable for trailer coupling |
S3ACA=No |
||||||||
| 01 | Carrier, bumper rear | 1 | 51127058467 | $189.67 | +core | ||||
| 02 | Washer-gasket | 2 | 51127131741 | $1.23 | |||||
| Thread pitch Thread pitch |
|||||||||
| 03 | Hex nut wiht flange | M12X1,75 | 6 | 02/2004 | 07119904026 | $0.47 | ENDED | ||
| 03 | Hex nut | M12-10-ZNS3 | 6 | 07119901589 | $2.06 | ||||
| 03 | Hex nut | M12X1,5-10 ZNS3 | 6 | 09/2006 | 07119906050 | $1.09 | |||
| 03 | Hex nut | M12X1,5-10 ZNS3 | 6 | 07119906050 | $1.09 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
