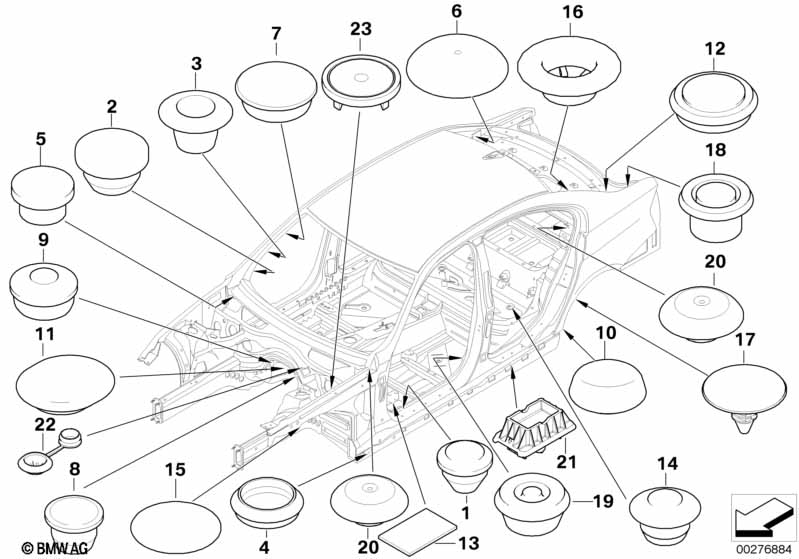

3' E90 LCI 330i Sealing cap/plug

Sealing cap/plug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=6,5MM 10 51718407016 $0.18
02 Blind plug D=15MM 27 07147127540 $0.26
03 Blind plug D=8MM 12 51718204406 $0.18
04 Blind plug D=25MM 20 51718126605 $0.39
05 Blind plug D=12MM 22 33311137456 $0.20
06 Blind plug D=20MM 76 07147140850 $0.19
07 Blind plug D=15MM 4 51718170298 $0.23
08 Blind plug D=12MM 8 51718110199 $0.18
09 Blind plug D=16MM 2 07147161442 $0.28
10 Blind plug D=12MM 23 07147127539 $0.26
11 Blind plug 30X36MM 4 51711872829 $0.89
12 Blind plug D=35MM 7 07147140849 $0.73
13 sealing 25X25MM 3 51718163653 $0.32
13 sealing 40X30MM 2 51718241617 $0.98
14 Pushrod seal D=34MM 1 61131370994 $2.37
15 Sealing film PUR, D=30MM 5 51711922189 $0.82
16 Blind plug D=10MM 4 51718226004 $0.23
17 Plug, black D=6,35MM 1 51488114499 $0.56
18 Blind plug D=40MM 1 51712258519 $0.89
19 Blind plug D=20MM 8 07147140850 $0.19
19 Sealing plug D=20 4 07147222097 $1.12
20 Blind plug with hotmelt D=12MM 2 07147131129 $0.49
21 Support lifting platform 4 51717237195 $13.80 ENDED
21 Support lifting platform 4 51717123311 $13.42
22 Plug D=15MM 1 51717180698 $1.02
23 Cover, steering column 1 51717123905
Notes
  • ENDED = the part has been discontinued (no longer available).
