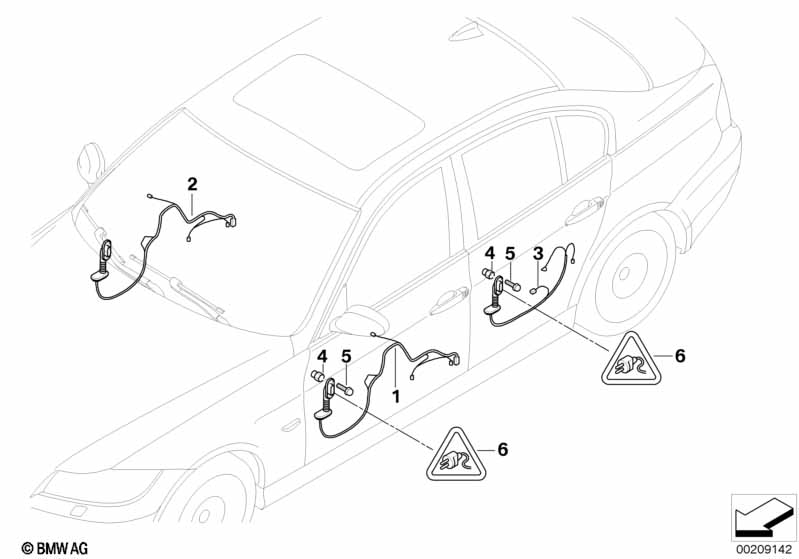

3' E90 LCI 330i Door cable harnesses

Door cable harnesses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiring set, door, driver 1 09/2008 61129186571 $75.58
02 Wiring set, door, co-driver 1 09/2008 61129186574
For vehicles with
Fold-in outside mirror
or
Interior/outside mirror with auto dip
or
Seat adjuster, electric, with memory

S313A=Yes

S430A=Yes

S459A=Yes
02 Wiring set, door, co-driver 1 09/2008 61129186576 $64.18
03 Wiring set rear door 2 61126938226 $43.30
04 Blind rivet nut, flat headed M5 4 61136954561 $0.63
05 Hex bolt 4 61136954557 $0.79
on main wiring harness
06 Pin terminal 32 POL. 4 61136925543 $2.55
only in conjunction with
-- Contact pin MQS 0,2-0,35MM²/SN 4 61131383672 $0.42
-- Contact pin MQS 0,5-0,75MM² /SN 4 61131393723 $0.42
-- Covering cap 4 61136925542 $1.12
-- Pin terminal 4 POL. 4 61136925545 $0.98
-- Slider 4 61136925547 $0.68
-- Pin-contact ELO-Power 2,8 x 0,63 0,5-1,0MM² 4 61138364833 $0.77
-- Pin-contact ELO-Power 2,8 x 0,63 1,0-2,5MM² 4 61138364835 $0.72
