3' E90 LCI 330i Control unit CAS

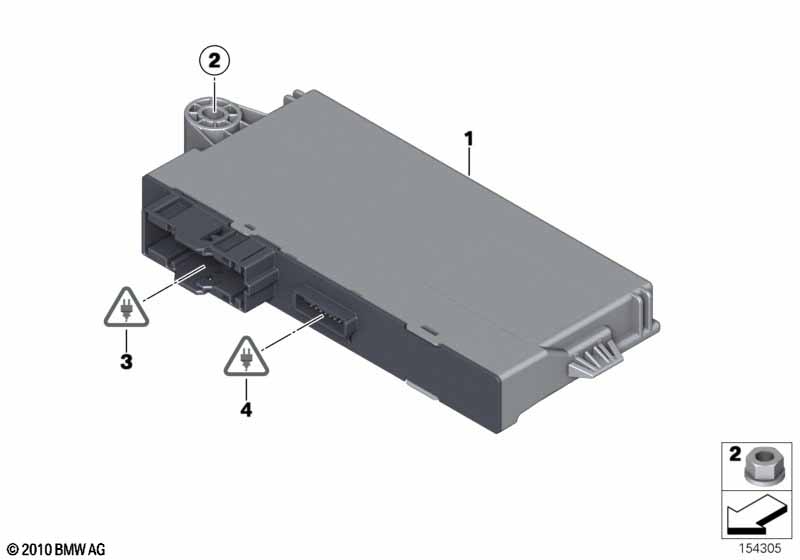

Control unit CAS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
For vehicles with
M double-clutch transmiss. w/Drivelogic
Sport transmission w/ dual-plate clutch


01 Control unit CAS CAS3 1 12/2004 61359226238 ENDED
01 Control unit CAS CAS3 1 12/2004 61359395657
02 Hex bolt M6X40 1 07119905206 $0.80
03 Covering cap 41 POL. 1 61136913650 $3.10
only in conjunction with
-- Socket terminal MQS 0,5-0.75 MM²/SN X 61131393724 $0.28
-- Socket housing 21 POL. 1 61136906054 $1.20
-- Socket housing 20 POL. 1 61136913652 $0.68
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN X 61138364834 $0.35
-- Socket contact ELO-Power 5,2x0,63 2,4- 4,0 MM? X 61138364844 $0.50
04 Socket housing 14POL./Z- CODE 1 61136913622
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN X 61131383776 $0.28
  • ENDED = the part has been discontinued (no longer available).
