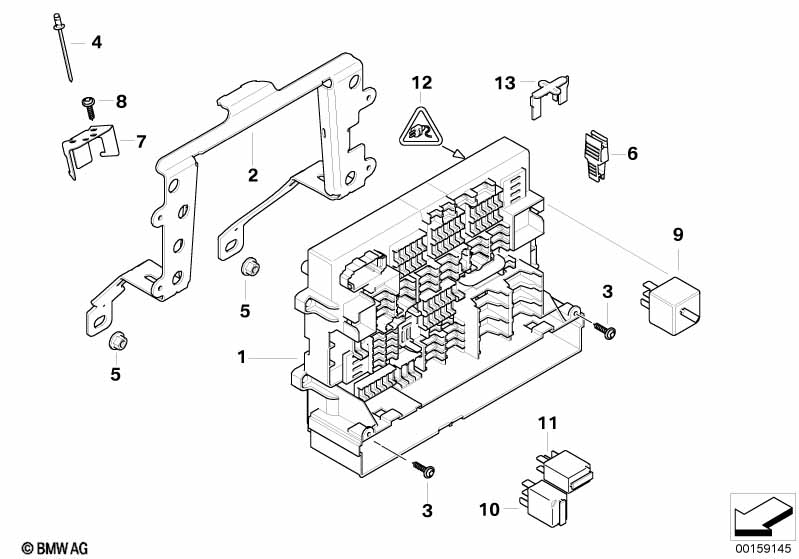

3' E90 LCI 330i Individual parts, power distributor, fr.
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | see PuMA measure no. 46126132 |
||||||||
| 01 | Power distribution box, front | 1 | 09/2007 | 61149119445 | $127.83 | ||||
| only in conjunction with | |||||||||
| -- | Cross brace power distributor | 1 | 09/2007 | 61149123980 | $0.62 | ||||
| Install F14 and F42 from old power distribution box |
|||||||||
| 02 | Bracket current distributor | 1 | 03/2007 | 61149210701 | |||||
| only in conjunction with | |||||||||
| -- | Spring | 1 | 03/2007 | 61149217743 | |||||
| 03 | Fillister head screw | 4 | 03/2007 | 07147142048 | $0.16 | ||||
| 04 | Blind rivet | 4 | 03/2007 | 07146952638 | $0.17 | ||||
| 05 | Hex nut | M6-8-ZNFE SW | 2 | 03/2007 | 07119904022 | $0.09 | |||
| 06 | Fuse clip | 1 | 03/2007 | 61146936578 | $1.10 | ||||
| 07 | Spring | 1 | 12/2009 | 61149217743 | |||||
| 08 | Screw | NS-TS4X12-ZNFE | 2 | 03/2007 | 07129904962 | $0.16 | |||
| Relay, clamp 30G | |||||||||
| 09 | Relay, make contact, black | 1 | 03/2007 | 61366901469 | $13.96 | +core | |||
| Relay for wiper | |||||||||
| 10 | Relay, changer, green | 1 | 03/2007 | 61366980177 | $23.75 | ||||
| Relay for rear-window wiper | |||||||||
| 11 | Relay, changer, green | 1 | 03/2007 | 61366980177 | $23.75 | ||||
| X11001, X11002, X11003,X11007, X11008 | |||||||||
| 12 | Socket housing | 10+ 5 POL. | 5 | 03/2007 | 61139225063 | ||||
| only in conjunction with | |||||||||
| -- | Double flat spring contact with cable | 2,5 MM² | X | 03/2007 | 61130007438 | $2.75 | |||
| -- | Double leaf spring contact | 0,5-1,0 MM² | X | 03/2007 | 61131378906 | $1.24 | |||
| X11004, X11005, X11006, X11009 | |||||||||
| 12 | Universal socket housing DFK40 | 6 POL. | 4 | 03/2007 | 61146938604 | $1.35 | |||
| only in conjunction with | |||||||||
| -- | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 03/2007 | 61138377730 | $0.63 | |||
| -- | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 03/2007 | 61138377732 | $0.63 | |||
| -- | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 03/2007 | 61138377734 | ||||
| X11011 | |||||||||
| 12 | Universal socket housing MAK8 | 6 POL. | 1 | 03/2007 | 61146937066 | $2.32 | |||
| only in conjunction with | |||||||||
| -- | Flat-type connector MAK8 | 2,5-4MM² | X | 03/2007 | 61136920092 | $1.90 | |||
| X11010 | |||||||||
| 12 | Universal socket housing, hybrid | 6+4 POL. | 1 | 03/2007 | 61136925614 | $4.23 | |||
| only in conjunction with | |||||||||
| -- | Terminal socket MQS ELA | 0,35-0,5 MM² | 1 | 03/2007 | 61136901726 | $0.43 | |||
| -- | Terminal socket MQS ELA | 0,75-1,5 MM² | 1 | 03/2007 | 61136901728 | $0.35 | |||
| -- | Socket contact ELO-Power 5,2x0,63 | 1,5-2,5 MM² SN | 1 | 03/2007 | 61138364842 | $0.50 | |||
| -- | Socket contact ELO-Power 5,2x0,63 | 2,4- 4,0 MM? | 1 | 03/2007 | 61138364844 | $0.50 | |||
| 13 | Cross brace power distributor | 2 | 03/2007 | 61149123980 | $0.62 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
