3' E90 LCI 330i Control unit Junctionbox Elektronik

Sponsored links

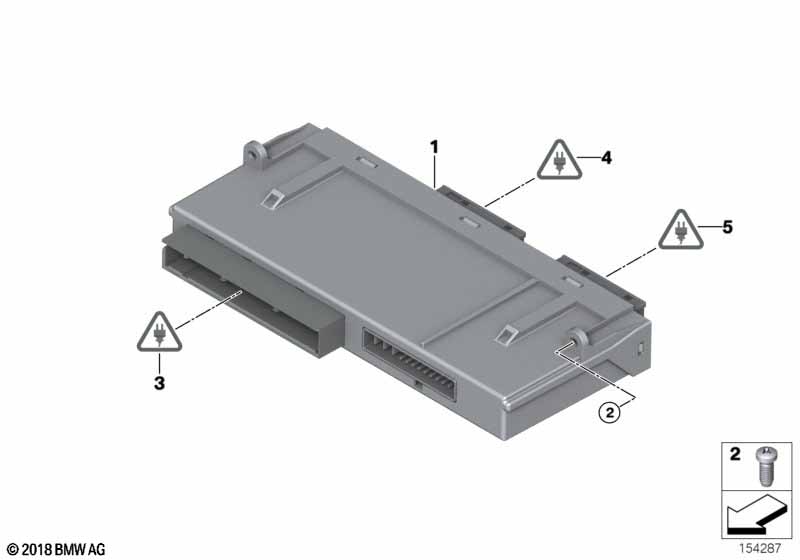

No.	Description	Supp.	Qty	From	Up To	Part Number	Price	Notes
01	Junction box for electronics 3		1	09/2007	03/2010	61359231468		ENDED
01	Junction box for electronics 3		1	09/2007		61359364819
02	Screw for thermoplastic plastics	M5X12	2	03/2007		07129904293	$1.05
03	Socket housing	47 POL.	1	03/2007		61136925558	$7.28
	only in conjunction with
--	Contact bushing MQS ELA with cable	0,35-0,5 MM² AG	X	03/2007		61130056961
--	Terminal socket MQS ELA	0.2-0.5 MM² SN	X	03/2007		61131393704	$0.23
--	Covering cap	47 POL.	1	03/2007		61136925571	$4.93
04	Covering cap	54 POL./SCHWARZ	1	03/2007		61136909080	$2.20
	only in conjunction with
--	Socket housing	37-54POL.	1	03/2007		61136909070	$1.08
--	Socket housing	36 POL.	1	03/2007		61136920062	$1.22
--	Socket terminal MQS	0.2-0.5MM²/SN	X	03/2007		61138369696	$0.28
--	Socket terminal MQS	0.75 MM² /SN	X	03/2007		61138369700	$0.35
05	Covering cap	54 POL.	1	03/2007		61136920074	$10.72
	only in conjunction with
--	Socket housing	37-54POL.	1	03/2007		61136909070	$1.08
--	Socket housing	36 POL.	1	03/2007		61136920062	$1.22
--	Socket terminal MQS	0.2-0.5MM²/SN	X	03/2007		61138369696	$0.28
--	Socket terminal MQS	0.75 MM² /SN	X	03/2007		61138369700	$0.35
