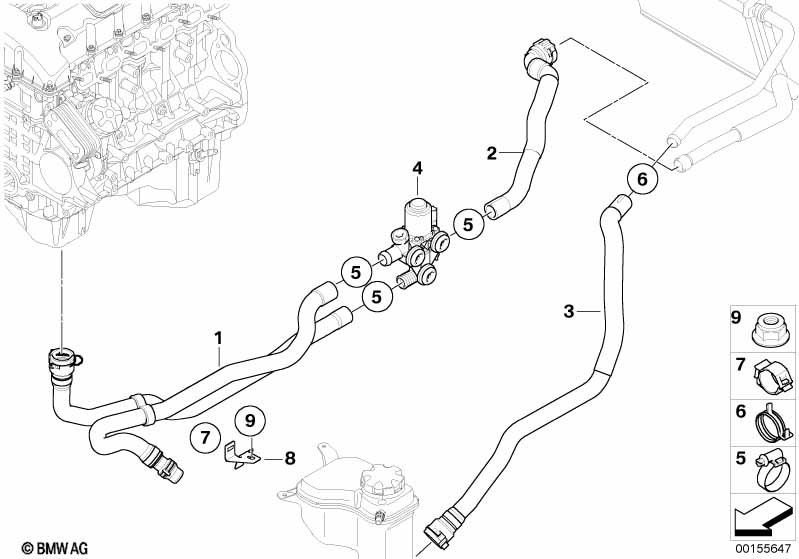

3' E90 LCI 330i Independent heating water valves

Independent heating water valves
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Auxiliary heating

S536A=Yes
01 Independent heating water valves 1 09/2006 64219111764 $49.89
02 Hose f radiator-changeover valve 1 64126953093 $23.71
03 Hose f radiator and engine return 1 64219150071 $31.70
04 Changeover valve 1 64126951815 $150.56
05 Hose clamp L16-30 3 64218367179 $1.07
06 Spring ring shell D=25MM 1 10/2006 64216921694 $2.48 ENDED
06 Spring ring shell D=25MM 1 64213405930
07 Hose clamp 2 64216930041 $0.55
08 Holder 1 64126954975
only in conjunction with
-- Hose clamp 2 64216921540 $0.62
09 Hex nut BM6-8-ZNS3 1 09/2004 07129904859 $0.47 ENDED
only in conjunction with
-- Cap 1 09/2004 51718255004 $0.33
09 Hex nut BM6-8-ZNNIV SI 1 07129905411 $0.38
only in conjunction with
-- Cap 1 51718255004 $0.33
Notes
  • ENDED = the part has been discontinued (no longer available).
