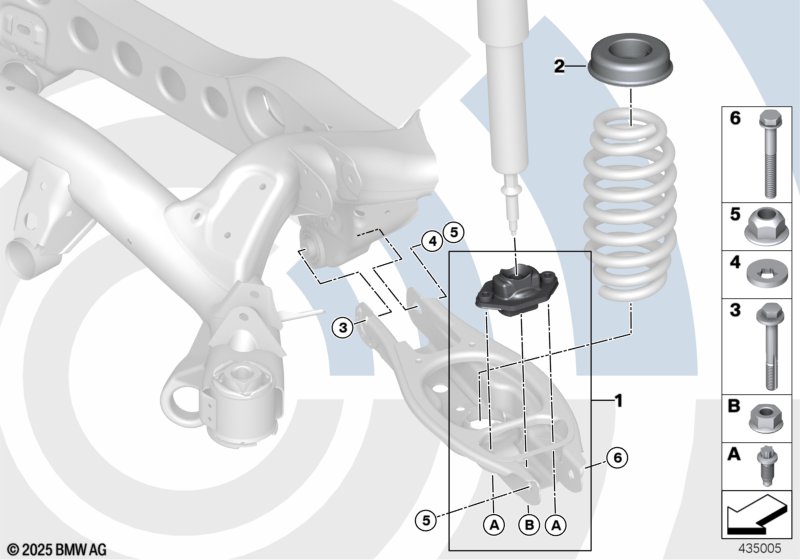

3' E90 LCI 330i Repair kit shock absorber rubber bushing
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Please observe Repair Manual. | |||||||||
| 01 | Repair kit shock absorber rubber bushing | VALUE LINE | 2 | 33522406287 | |||||
| Required for repair | |||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | |||||
| 02 | Spring pad lower | 2 | 33536764420 | $4.80 | |||||
| 03 | Eccentric bolt | M14X1,5X95-10.9 | 2 | 33306784983 | |||||
| 04 | Eccentric flat washer | 2 | 33306786187 | $1.14 | |||||
| 05 | Self-locking collar nut | M14X1,5-10 ZNS3 | 4 | 33306760349 | $1.33 | ||||
| 06 | Hex screw with collar | M14X1,5X82-10.9 | 2 | 33326762875 | $2.98 | ||||
