3' E90 LCI 330i Indiv.cover, basic seat, front
Sponsored links
Sponsored links

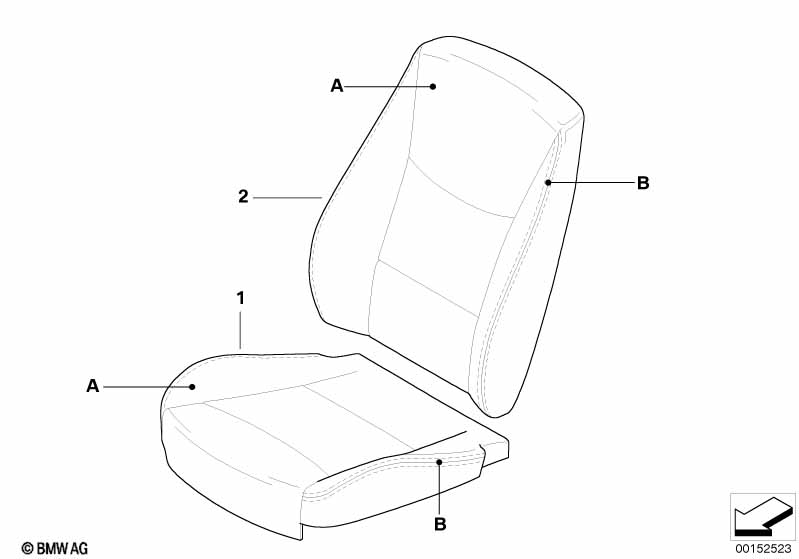

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) color spec. for twist.quilt. yarn WITHOUT Heater |
||||||||
| without heater element | |||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 2 | 09/2008 | 52107974309 | NoS | |||
| For vehicles with Isofix-System without heater element |
S470A=Yes |
||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 1 | 09/2008 | 52107974315 | NoS | |||
| without heater element | |||||||||
| 02 | Backrest cover, basic seat, leather,left | INDIVIDUAL | 1 | 09/2008 | 52107974307 | NoS | |||
| 02 | Backrest cover,basic seat, leather,right | INDIVIDUAL | 1 | 09/2008 | 52107974308 | NoS | |||
Notes
- NoS = No Stock (Part, central, not in stock.)
