3' E90 LCI 330i Ind.through-loading sys. rear basic seat

Ind.through-loading sys. rear basic seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to individual vehicles
with upholstery code Z1XX
----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.
- (A) Part number leather
- (B) color spec. for twist.quilt. yarn
For vehicles with
basic seat (standard seat)


























=Yes

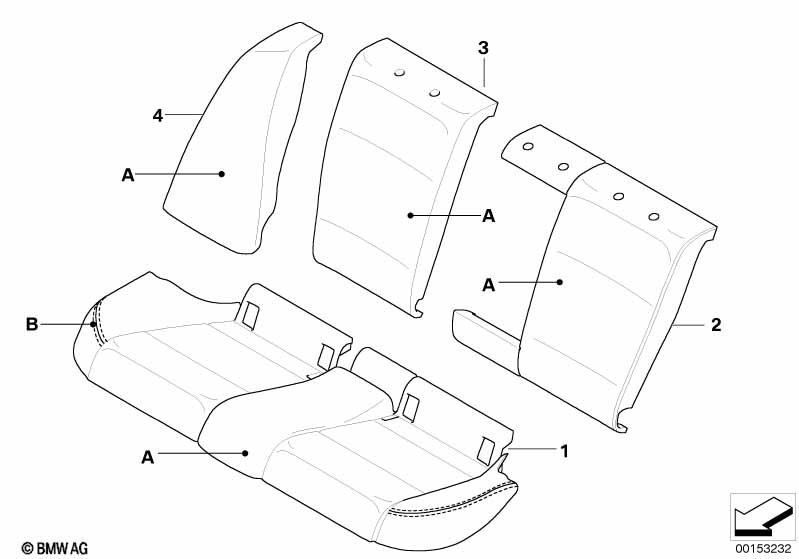

01 Seat cover, basic seat, leather, rear INDIVIDUAL 1 09/2005 52207962326 NoS
02 Cover backrest, leather, rear left INDIVIDUAL 1 03/2006 52207966011 NoS
03 Cover backrest, leather, rear right INDIVIDUAL 1 03/2006 52207966013 NoS
04 Lateral trim panel left INDIVIDUAL 1 09/2005 52207962329 NoS
04 Lateral trim panel right INDIVIDUAL 1 09/2005 52207962330 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
