3' E90 LCI 330i Indi. door trim, part leather, rear, LC
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|

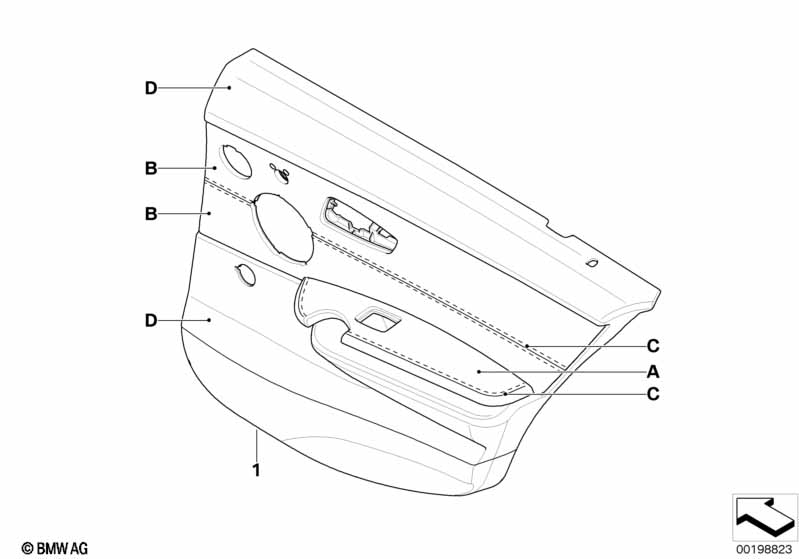

| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------------- Important! Components from series production are not available through this order no. . Series components are also installed on Individual vehicles. Always confirm in advance that the required replacement component is not a standard series component. . Door trim panels in versions: - Black / Oyster = LCCX - Black / Sattelbraun = LCD3 - Black / Rotbraun = LCCZ correspond to the series components and, if possible, should not be ordered using the individual detail numbers. ---------------------------------------- The specific data entries required when placing the order vary according to the specific requirement. . Spare part for Individual vehicle: - Part number - Dealer number - VIN . Retrofitting an Individual part: - Part number - Dealer number - VIN - (A) Part number for leather - (B) Part number for imitation leather - (C) Thread color specification = suitable - (D) Thread color spec. upper/lower section --------------------------- Version: . Armrest (A) - in leather . Trim cover center - in imitation leather (B) . Upper/lower section (D) - in PVC film --------------------------- Version in: - Leather Dakota - imitation leather Seam pattern = LC --------------------------- |
||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976305 | +core, NoS | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976306 | +core, NoS | |||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976311 | +core | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976312 | +core | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976309 | +core, NoS | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976310 | +core, NoS | |||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S417A=Yes S677A=Yes S688A=No |
||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976311 | +core | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976312 | +core | |||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S417A=Yes S677A=No S688A=Yes |
||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976311 | +core, NoS | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976312 | +core, NoS | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part, central, not in stock.)
