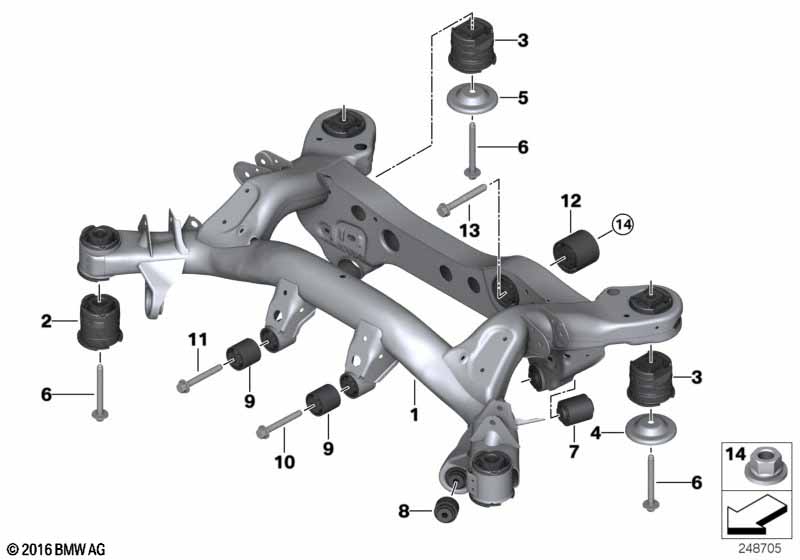

3' E90 LCI M3 Rear axle carrier

Rear axle carrier
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear axle carrier 1 33312283340 $2229.23
02 RUBBER MOUNTING front 2 33312283382 $76.91
03 RUBBER MOUNTING rear 2 33312283383 $76.91
04 Stopper, rear 1 33316794866
05 Stopper, rear 1 33316794866
06 Torx-bolt with washer M12X127-10.9 4 06/2011 33326760340 $3.60
07 Rubber mount, roll-over strut 2 33326770829 $26.77
08 Rubber Mounting 2 33326763092 $16.71
09 RUBBER MOUNTING front 2 33312284019 $25.93
10 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
11 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
12 RUBBER MOUNTING rear 1 33312283384 $26.77
13 Collar screw M14X1,5X112 1 33306785433 $2.57
14 Combination nut M14X1,5-10ZNS3 1 33326760380 $2.48
