5' E61 LCI 525d Oil pan/oil level indicator

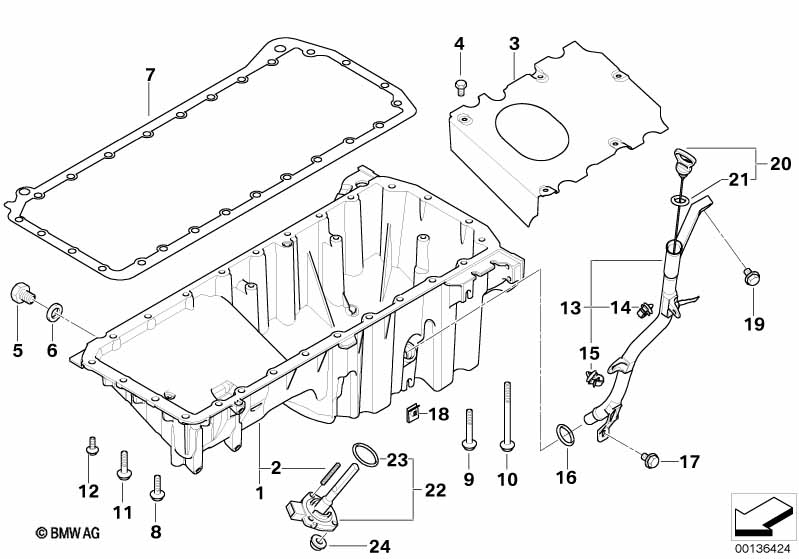

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137806219 +core
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
05 Screw plug M12X16 1 11137535106 $3.68
06 Gasket ring A12X17-CU 1 07119963151 $0.57
07 Gasket Steel 1 11137802669 $48.50
Required for repair
-- Torx bolt M6X22 17 11137800619 $0.67
-- Torx bolt M8X30 4 11137800621 $1.08 ENDED
-- Torx bolt M6X60-ZNNIV SI 2 11137800622 $1.08
-- Torx bolt M6X100 2 11137800623 $1.65
08 Torx bolt M6X22 17 11137800619 $0.67
09 Torx bolt M6X60-ZNNIV SI 2 11137800622 $1.08
10 Torx bolt M6X100 2 11137800623 $1.65
11 Torx bolt M8X30 3 10/2015 11137800621 $1.08 ENDED
11 ASA-Bolt M8X30 3 11138592611
12 Torx bolt M8X30 1 10/2015 11137800621 $1.08 ENDED
12 ASA-Bolt M8X30 1 11138592611
13 Guide tube 1 11437793309
14 Tubing support D10-11 1 13532245954
15 Clip retainer 1 61138368029 $0.43
16 O-ring 14X3 1 11437794698 $1.19
17 Hex bolt with washer M6X14-U1-8.8 1 07119905525 $0.47
18 Clip nut M6-ZNS3 1 11427789289 $1.07
19 Hex bolt with washer M6X14-U1-8.8 1 07119905525 $0.47
20 Dipstick 1 11437797527
21 O-ring 9X2,2 2 11431717666 $0.73
Before replacing the oil level sensor
always note PuMA measure 29604954!
22 Oil levelling sensor 1 12617607910
23 Gasket ring 1 12611744292 $6.42
24 Hex nut BM6-8-ZNNIV SI 3 07129905411 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
