5' E61 LCI 525xd Trim and seals for door, front

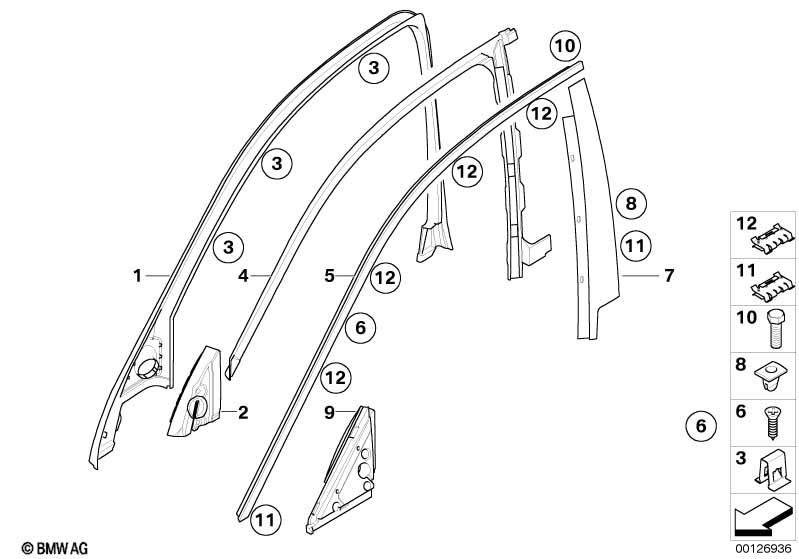

Trim and seals for door, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, window frame, door front left 1 51337033627 $32.13
01 Cover, window frame, door front right 1 51337033628 $32.13
02 Seal, inner left mirror triangle 1 51337076123 $14.72
02 Seal, inner right mirror triangle 1 51337076124 $14.72
03 Clamp 4 51168196960 $0.28 ENDED
03 Plug-in retainer 4 07146957034 $0.25
04 Sealing, door front left 1 51337033801 $25.41
04 Sealing, door front right 1 51337033802 $25.41
05 Trim, window frame, top, door front left CHROM 1 51337072885 $69.71
05 Finisher window frame top FR door CHROM 1 51337072886 $69.71
For vehicles with
Shadow-Line

S339A=Yes
05 Trim, window frame, top, door front left SCHWARZ 1 51337072883 $38.11
05 Finisher window frame top FR door SCHWARZ 1 51337072884 $38.11
For vehicles with
High gloss shadow line

S760A=Yes
05 Trim, window frame, top, door front left GLANZSCHWARZ 1 51337897667 $103.83
05 Finisher window frame top FR door GLANZSCHWARZ 1 51337897668 $103.83
06 Recessed oval head sheet-metal screw ST4,2X13 6 07119902527 $0.13 ENDED
06 Sheet-metal screw, black ST4,2X13 6 07119901268 $0.44
07 Finisher window frame B-pillar FL door 1 51337033803 $35.76
07 Finisher window frame B-pillar FR door 1 51337033804 $35.76
For vehicles with
High gloss shadow line

S760A=Yes
07 Finisher window frame B-pillar FL door GLANZSCHWARZ 1 51337898141 $35.76
07 Finisher window frame B-pillar FR door GLANZSCHWARZ 1 51337898142 $35.76
08 Expanding nut 6 51337008408 $0.47
09 Seal, outer left mirror triangle 1 51337033637 $14.08
09 Seal, outer right mirror triangle 1 51337033638 $14.08
11 Clamp 4 51337072896 $1.73
12 Clamp X 51337072895 $1.73
Notes
  • ENDED = the part has been discontinued (no longer available).
