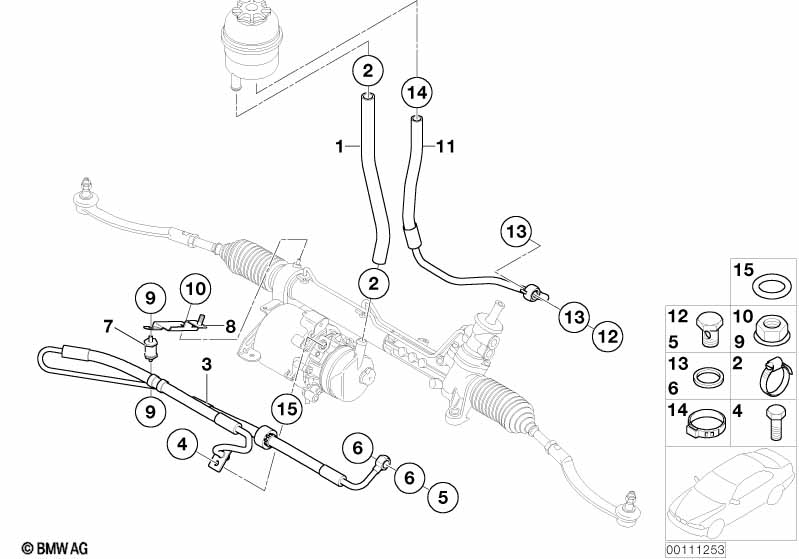

MINI R50 Cooper Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 32416754498 $53.65 +core
02 Hose clamp D=20,9-24,1 2 32111131345 $2.12
03 Pressure hose assy 1 32416781751 $254.92
04 Hex bolt M8X20-8.8ZNS3 1 07119904401 $0.38
05 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
06 Gasket ring A14X20-CUSN 2 11/2007 32411093596 $0.31
06 Gasket ring A14X18-CUSN 2 07119906464 $0.25
10 Self-locking hex nut M6-8-ZNNIV SI 1 07119905949 $0.24
11 Return pipe 1 32416781744 $61.05
12 Hollow bolt M16X28 1 11/2007 32416783887 $3.98 ENDED
12 Hollow bolt M16X28 1 11/2007 32416852470
12 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
12 Hollow bolt M16X28 1 32416852470
13 Gasket ring A16X22-CUSN 2 11/2007 32411093597 $0.27
13 Gasket ring A16X20-CUSN 2 07119906463 $0.33
14 Hose clamp D=16,6-20MM 1 16121180242 $1.08
15 O-ring 8X2 NBR-90-10 1 32416762724 $0.81
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
