MINI R53 Cooper S Cylinder Head Attached Parts

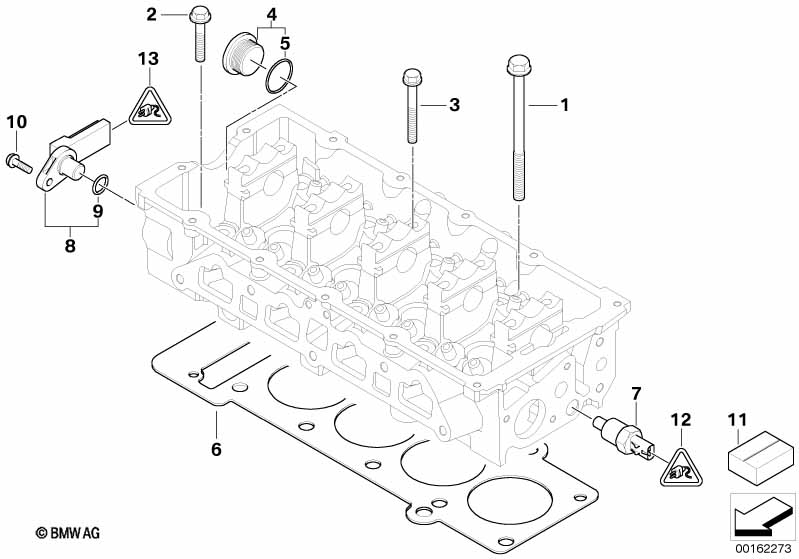

Cylinder Head Attached Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head bolt M10X150MM 10 07131487226 $3.82
02 Hex bolt with washer M8X45 2 11317829911 $1.07
03 Hexagon screw with flange M8X65MM 10 07131500901 $1.80
04 Screw Plug With Gasket Ring 2 11311487189 $7.20
05 O-ring 2 11317514982 $0.88
06 Cylinder Head Gasket Asbestos-Free 0,65MM 1 11127508543 $66.77
06 Cylinder Head Gasket Asbestos-Free 0,95MM(+0,3) 1 11127508544 $74.19
07 Temperature sensor, water 1 13621486698 $12.42
08 Camshaft position sensor 1 12141485845 $116.05
09 O-ring 1 12147514984 $3.61
10 Hex bolt with washer M6X20MM 1 07131487232 $0.44
Gasket set without cyl.head gasket
11 Gasket Set Cylinder Head Asbestos Free 1 11120147561 $264.13
12 Socket housing 2 pins 1 12527511368 $2.53
only in conjunction with
-- Grommet 1 12526909252 $3.37
-- Bushing contact 0,5-1,0MM² 1 12527511406 $0.50
13 Socket housing 3 pins black 1 12527511371 $6.70
only in conjunction with
-- Bushing contact 0,5-1,0MM² 1 12527511408 $0.50
-- Bushing contact 1,2-2,0 MM² 1 12527511409 $0.50
