5' F07 GT 535d Engine block

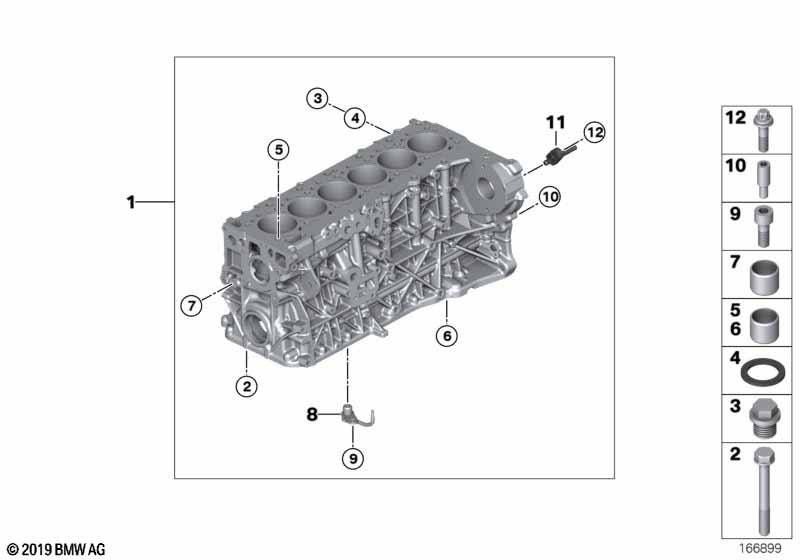

Engine block
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine block with piston 1 05/2014 11110443022 ENDED, +core
01 Engine block with piston 1 11112359836
Required for repair
-- Primer Loctite 171000 4ML 1 83197515683 $11.90
02 Hex bolt M10X85 14 09/2013 11118513335 ENDED
02 ASA-Bolt M10X85 14 09/2013 11118578191 ENDED
02 ASA-Bolt M10X85 14 11118571560
03 Screw plug M14X1,5-ZNNIV 1 07119904539 $2.56
04 Gasket ring A14X20-AL 1 07119963225 $0.11
05 Dowel D=14,5MM 4 11112245180 $1.65
06 Dowel D=10,5MM 4 11121726238 $1.62
07 Dowel D=8,5X9MM 2 11121726242 $1.07
08 Oil Spraying Nozzle 6 11427805346
09 ISA screw M6X16 6 07129904963 $0.82
10 Bolt 4 13527797908
11 Oil Spraying Nozzle 1 13527797909
12 ASA-Bolt M6X22-Z1 1 13527800396
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
